VRT-150 Series

Click image to enlarge

Speed/Ratio Adjustments

Speed adjustments are easily and precisely made via the control shaft.  The customer has the option of having the VRT supplied with a lever control that can be moved through an arc, a screw control that allows for repeatable finite adjustments by simply turning a hand-wheel, or supplied with no control mechanism attached to the control shaft such that a customer-supplied control can be added.  A mechanical or electric actuator is often used for this purpose

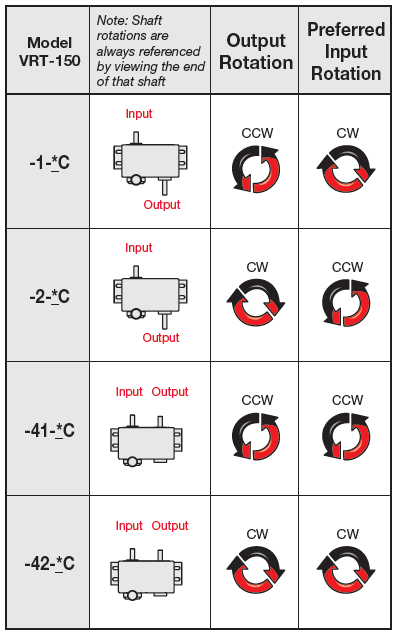

The VRT-150 Series (models -1, -2, -41, -42):
  • Torque Rating: 150 in-lb
  • Input Speed Range: 0-300 RPM
  • Output Speed Range: 0-75 RPM (~0 to 0.25:1 ratio)
  • Special Designs Available
