Power-Series Composite Disc Couplings
Engineered for Precise High Torque Performance
The Power-Series is the latest addition to Zero-Max’s field proven Composite Disc Couplings (CD® Couplings). Built upon decades of experience, the design of the CD Power-Series features higher power-density, providing higher torque capacity in a smaller and more compact solution. The CD Power-Series also features the proven composite disc technology that has made Zero-Max the choice of engineers in the most demanding motion control applications. From its initial concept through its high quality manufacturing processes, the CD Power-Series is engineered for precise high-torque operation.

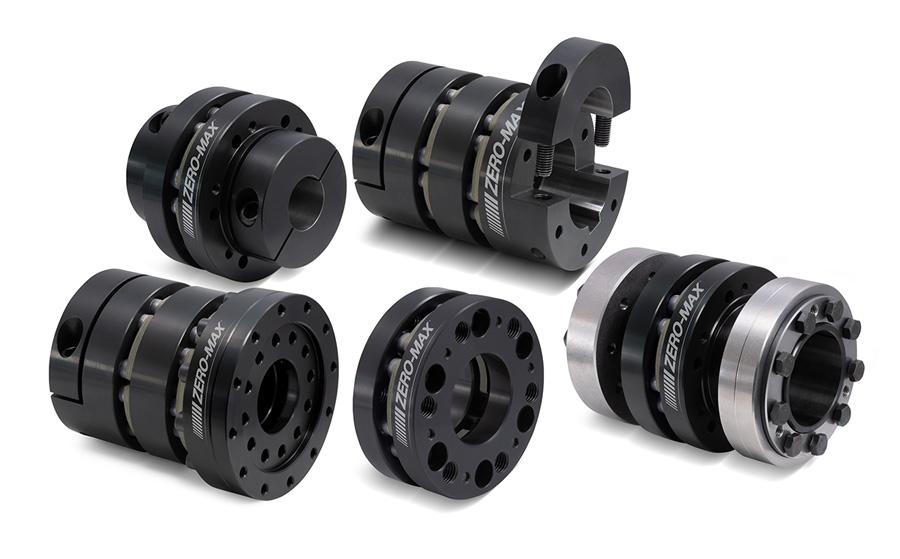

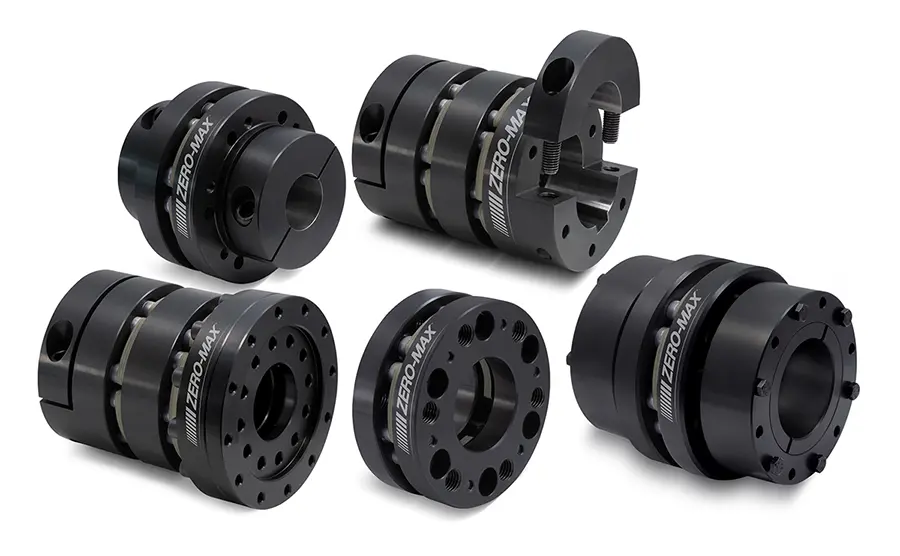

The Power Series provides Zero Backlash and High Torsional Stiffness performance and features an extensive offering of new standard mounting options including Clamp Hubs (integrated clamp and split clamp options), Shrink-Disc Hubs, Adaptor Mounts which are compatible with ISO 9409-1 mounting specifications, and Flange Hub options. These flexible shaft couplings are designed and constructed to provide servo-rated performance in the toughest conditions – including those with motion profiles that consist of repetitive speed changes, starting/stopping, indexing, reversing, etc.
Zero-Max first created the Composite Disc Coupling years ago and has become the standard for OEMs who require performance above what a metal disc coupling can provide. Our CD Couplings support high speeds and aggressive motion profiles, while eliminating the fatigue and fretting corrosion often seen in metal disc designs, resulting in an increased lifespan. The Power-Series builds off that proven technology with a premium solution that provides greater power density, allowing for higher torque transmission in a smaller coupling package to meet the needs of today’s most challenging requirements.
Power and Performance
The CD Power-Series Couplings feature a stiffer disc pack that delivers higher torque capacity in a smaller diameter coupling. While misalignment capacity is reduced compared to our traditional CD Couplings, it remains on par with metal disc couplings, offering a high-performance solution when space is limited. These latest flexible shaft couplings from Zero-Max are available in single-flex, double-flex, and custom models, to meet the needs of even the most challenging applications.
Our advanced design provides the following benefits:
- ZERO Backlash and MAXimum Performance
- Increased Power Density to provide higher torque in a smaller package
- Operational temperature range of -70° to 250°F (-57° to 121°C)
- High torsional stiffness for high accuracy operation
- Black oxide coatings on steel hubs for general environment protection
- Longer life than metal disc couplings
- Non-conductive and chemical-resistant disc pack material
- Precision machining and tolerancing for proper fit, high concentricity, and ultimate performance
- RoHS compliance
- Customizable to meet unique requirements
Power-Series Flexible Coupling Options

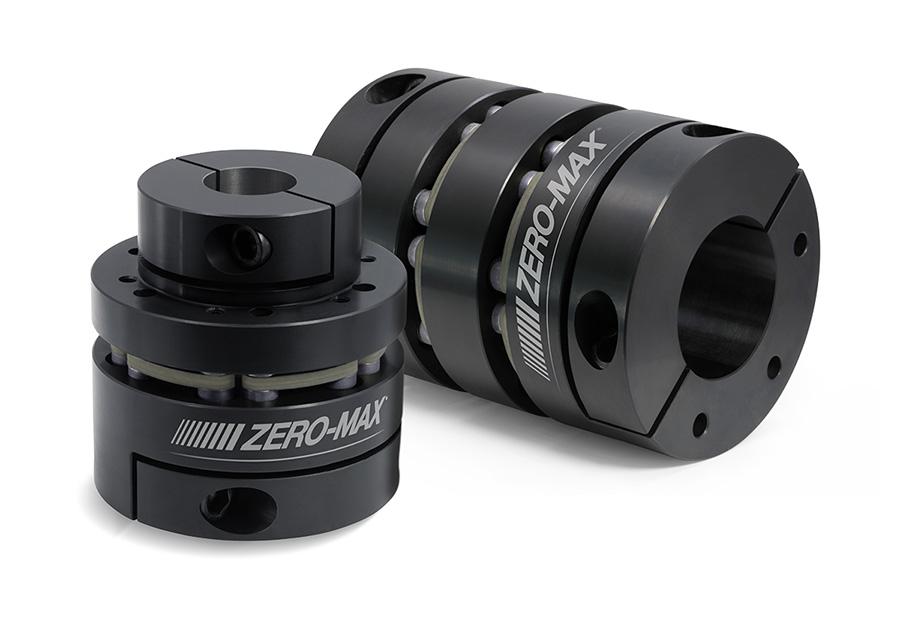

Single-Flex Power-Series Composite Disc Couplings
CD Power-Series Single-Flex Composite Disc Couplings provide the highest torsional-stiffness along with limited parallel shaft misalignment. These shaft couplings provide the most compact solution and are available with the full selection of standard hubs, as well as customization options.
Double-Flex Power-Series Composite Disc Couplings
CD Power-Series Double-Flex Composite Disc Couplings have a longer overall length to accommodate a higher amount of shaft misalignment with lower reaction loads than the single-flex version. These Double-Flex shaft couplings are also available with the full selection of standard hubs and customization options.
Custom Power-Series Composite Disc Couplings
Zero-Max is known world-wide for its willingness and success with custom CD Couplings that are built to accommodate unique specifications. You get the benefit of zero backlash operation, high torsional stiffness, and maintenance-free operation in a custom, purpose-built design.
Applications
High-Speed Composite Disc Couplings from Zero-Max tackle your most demanding applications. The Power-Series was designed to meet today’s growing trends where premium performance is required in high-torque applications. While applications requiring higher levels of shaft misalignment will still benefit from our traditional line of CD Couplings, the Power-Series offers the ultimate balance of Power and Performance with the ability to accommodate higher torque requirements in a more compact solution. We can also design and manufacture a custom coupling solution to handle your unique application.
Zero-Max’s Power-Series of CD Couplings are ideal for high torque / high precision applications, including packaging machines, pick and place systems, gearboxes, test systems, specialty machines, robotic equipment, and other demanding applications that require servo-rated shaft couplings. Our high torsional stiffness, zero-backlash, maintenance-free Composite Disc Couplings are field-proven in a large variety of applications and industries.
Predictable High Quality with our Power-Series of Flexible CD Couplings
Zero-Max is the leader in composite disc coupling technology. Browse the product categories above to find your ideal CD Couplings or view our product catalogs for a comprehensive overview of all products and capabilities offered.
Locate your nearest sales representative, request a quote, or contact us application requirements.
