Double-Flex CD Power-Series Couplings
The CD Coupling Power-Series is the latest addition to Zero-Max’s leading Composite Disc Coupling (CD® Coupling) offering. The Power-Series design maximizes power density to provide higher torque capacity in a smaller package than our traditional CD Couplings. The Power-Series is a natural compliment to the traditional CD Coupling product line OEMs around the World depend on. Applications that require higher shaft misalignment may still benefit from the traditional line of CD Couplings. Contact the factory with your specific requirements.
The Power-Series Double-Flex Composite Disc Couplings offer a premium solution for applications that require high torque transmission as well as precise performance. The double-flex design provides additional shaft misalignment capacity in comparison to the single-flex couplings while still offering the high torsional stiffness required for smooth, accurate operation in demanding applications. The Power Series Couplings are maintenance-free and are an excellent option for aggressive motion profiles such as reversing loads, starting and stopping, indexing, etc.. These couplings provide zero backlash operation to eliminate lost motion and remove the fatigue, fretting corrosion, and premature wear issues often seen in metal disc couplings.
Zero-Max offers Best-In-Class products and service including fast turnaround and a willingness to provide custom solutions to meet your specifications. Contact us to learn more! The Power-Series is also available in a single-flex model which provides the higher torsional stiffness.

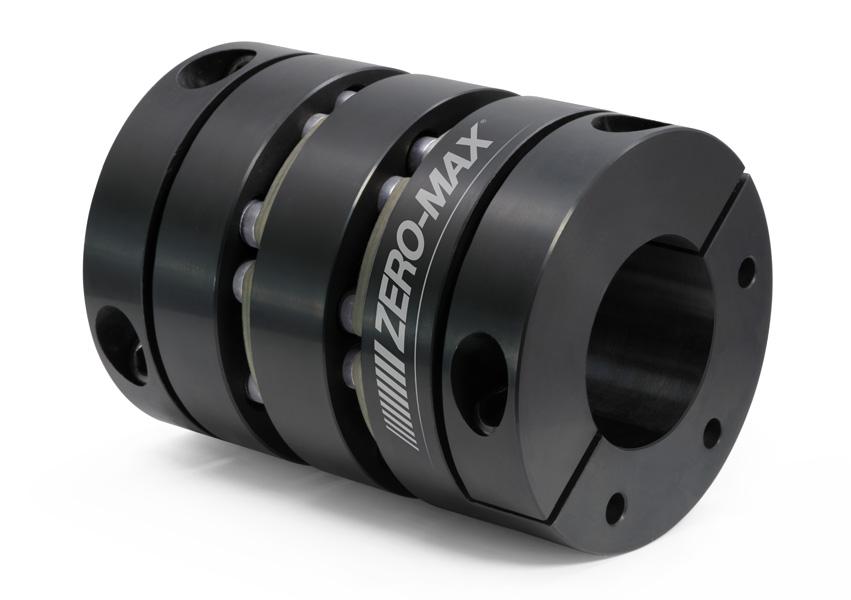

Zero-Max offers Power-Series Double-Flex Composite Disc Flexible Shaft Couplings with several mounting options to meet a broad range of motion control application requirements. These solutions are available in multiple sizes, hub options, flange options, and torque ratings. Hub styles include clamping hubs (both integral clamp hub and split collar clamp hub versions), shrink-disc hubs, and different Adaptor Mount and Flange hub options.
Selecting the Right Power-Series Composite Disc Double Flex Coupling
Which Hub Style Should I Choose?
Although the ideal hub style is both application and preference dependent, clamping hubs are the most popular style and often the first choice of engineers. Clamping hubs simplify installation, do not damage the shaft they are attached to, and engage the entire shaft circumference to offer sufficient holding power in most applications. They are also suitable for shafts with or without keyways, although keyways are often recommended for maximum torque capacity (see transmittable torque charts). Zero-Max offers both a single-piece (integral) clamping hub as well as a two-piece (split) clamping hub for larger bore options and easier installation. Shrink-Disc Hub connections are also available when needed for their high torque transmission on keyless shafts. Shrink-Disc hubs provide a uniform design and clamping force promoting smooth operation at high speeds.
The Power-Series also comes with Adaptor Mount Hub options which are compatible with ISO 9409-1 mounting standards and mount directly to many flanged gear reducers, motors, robotic equipment, etc. – providing an integrated attachment solution. There is also a standard Flange Hub option that can be attached to specific system outputs for the most compact solution possible. Choose any of the links above or contact the factory for more details.
Custom Power-Series Double Flex Couplings
Although Zero-Max’s standard offering for Composite Disc Couplings is extensive and can fit many applications, some users have unique requirements that must be met. All Power-Series Double-Flex Couplings can also be customized for your specific requirements, whether it be bore diameter, torque capacity, torsional stiffness, misalignment capacity, mounting, materials or other factors. If you do not find a stock option that meets your specifications, our team can design and build a custom-tailored double flex CD Coupling to meet your needs. In fact, nearly half of our sales each year come from custom solutions. Click Here to find out more.
Our engineers have the experience and expertise to provide a solution that you can be confident in. With the latest technology and various types of static and dynamic testing, we ensure your design specifications are met. Using an in-house test and quality lab saves time and ensures our design engineers have all the right information they need.
No application is too large, too small, or too difficult for custom composite disc coupling from Zero-Max. Contact us for more information and to start designing your custom composite disc couplings. Request a quote for more specifications.
