Single Flex Clamp Hub x Adaptor Mount Power Series Composite Disc Couplings
Part Number: 8A67-C-AM
Click image to enlarge
Click image to enlarge
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub
Technical Resources

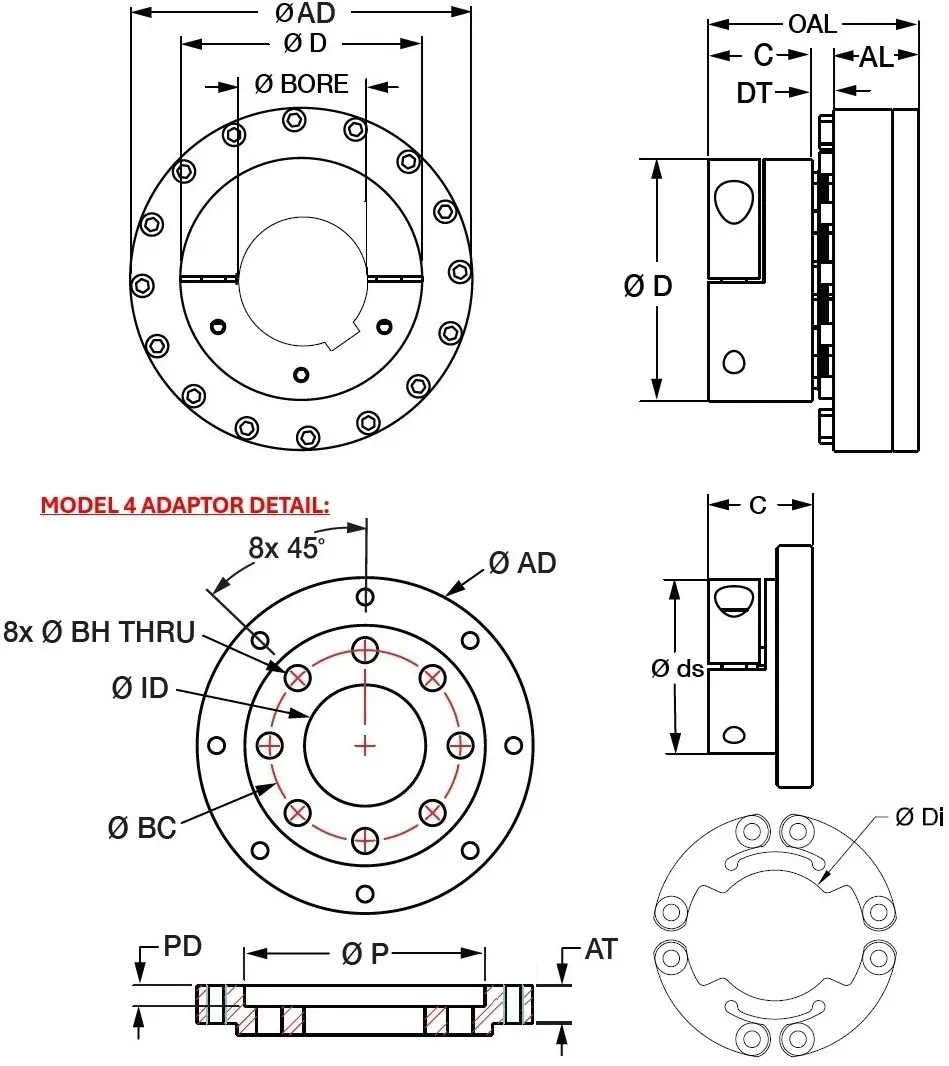

| Clamp x GB Adaptor 8A67-C-AM Configuration | |
| Clamp Option 1 | |
| Bore Size D1 | |
| d1 Keyway Option | |
8A67-C-AM Specifications
Click for English
Click for Metric
| Part Number | 8A67-C-AM |
| Continuous Rated Torque: | 778 in-lbs |
| Continuous Rated Torque : | 88 Nm |
| Peak Rated Torque: | 1,556 in-lbs |
| Peak Rated Torque : | 176 Nm |
| Max Bore (C1, Integral Clamp), Keyway: | 1.375 inch |
| Max Bore (C1, Integral Clamp), Keyway : | 35mm |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart): | 1.375 inch |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart) : | 35mm |
| Max Bore (C2, Split Clamp), Keyway: | 1.375 inch |
| Max Bore (C2, Split Clamp), Keyway : | 35mm |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart): | 1.375 inch |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart) : | 35mm |
| Maximum Speed: | 13,115 RPM |
| Torsional Stiffness: | 5,320 In-lbs/degree |
| Torsional Stiffness : | 34,442 Nm/rad |
| Angular Misalignment: | 0.75° |
| Axial Misalignment: | 0.023 inch |
| Axial Misalignment : | 0.58 mm |
| Parallel Misalignment: | 0.001 inch |
| Parallel Misalignment : | 0.03 mm |
| Hub OD (D): | 2.64 inch |
| Hub OD (D) : | 67 mm |
| Reduced Hub OD (Integral Clamp), ds: | N/A |
| Reduced Hub OD (Integral Clamp), ds : | N/A |
| Hub Length (C): | 1.250 inch |
| Hub Length (C) : | 31.8 mm |
| Overall Length (OAL): | 2.66 inch |
| Overall Length (OAL) : | 67.6 mm |
| Disc Pack ID (Di): | 1.25 inch |
| Disc Pack ID (Di) : | 31.8 mm |
| Disc Pack Thickness (DT): | 0.351 inch |
| Disc Pack Thickness (DT) : | 8.9 mm |
| Adaptor Model: | AM50 |
| Adaptor Diameter (AD): | 3.44 inch |
| Adaptor Diameter (AD) : | 87.4 mm |
| Adaptor Length (AL): | 1.06 inch |
| Adaptor Length (AL) : | 26.9 mm |
| Pilot Diameter (ØP): | 2.4803 / 2.4813 inch |
| Pilot Diameter (ØP) : | 63.000 / 63.025 mm |
| Pilot Depth (PD): | 0.22 inch |
| Pilot Depth (PD) : | 5.5 mm |
| Adaptor Plate Thickness (AT): | 0.39 inch |
| Adaptor Plate Thickness (AT) : | 10.0 mm |
| Bolt Hole Diameter (ØBH): | 0.26 inch |
| Bolt Hole Diameter (ØBH) : | 6.6 mm |
| Bolt Circle (ØBC): | 1.97 inch |
| Bolt Circle (ØBC) : | 50.0 mm |
| Adaptor Plate ID (ID): | 1.25 inch |
| Adaptor Plate ID (ID) : | 31.8 mm |
| Weight: | See Catalog |
| Weight : | See Catalog |
| Inertia: | See Catalog |
| Inertia : | See Catalog |
