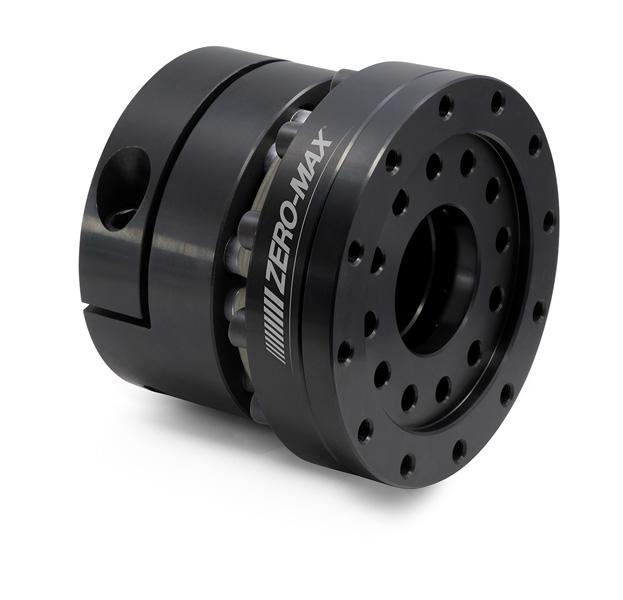

Single-Flex Power-Series Clamp Hub x Adaptor Mount CD® Couplings

Request Quote
Contact Us
Click image to enlarge

The Power-Series is the latest addition to the field-proven Composite Disc (CD) Coupling line from Zero-Max that Engineers around the World rely on.  The unique design captures the benefits of our proven composite disc-pack along with maximum power density – allowing for higher torque in a smaller size than the traditional CD Flexible Shaft Coupling line.  These CD Coupling Power-Series solutions are ideal for high-performance and demanding applications by featuring zero-backlash operation, high torsional stiffness, damping characteristics, and long maintenance-free operation.

The “Clamp Hub x Adaptor Mount” configuration features a traditional Clamping Hub on one side and an Adaptor Plate Hub that is compatible with ISO 9409-1 standards for direct mounting to many gearboxes, transducers, etc. on the other side for higher torsional stiffness and an integrated space savings solution.  The Clamping Hub works with both keyed and non-keyed shafts (see transmittable torque charts in our catalog for specifications) and are available as a single-piece integrated clamping hub or as a two-piece (split) clamping hub option for larger bore sizes and easier installation.   Review Catalog for available sizes and details on the Integrated Adaptor Mount Hub.


Shrink Disc x Adaptor Mount Coupling Advantages

The  Single-Flex Power Series CD Couplings offer advantages including:

  • Zero Backlash
  • Easy Installation
  • High Power Density
  • High Torsional Stiffness
  • Excellent for Reversing Loads
  • Excellent for 24/7 Reversal of Loads Without Fatigue
  • Smooth Operating at High Speeds
  • Compact Size

Other Hub Styles available include:

  • Shrink-Disc Hubs
  • Flange Hubs (custom integrations)
  • Custom Hubs (contact factory)

Locate your nearest sales representative, request a quote, or contact us for more information or to discuss your applications with one of our engineers.
