Part Number: 12A165-C-AM
Warning : array_merge(): Argument #2 is not an array in
/data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line
35
Click image to enlarge
Specifications
Click for English
Click for Metric
Continuous Rated Torque: 27,500 in-lbsContinuous Rated Torque : 3,107 NmPeak Rated Torque: 55,000 in-lbsPeak Rated Torque : 6,215 NmMax Bore (C2, Split Clamp), Keyway: 3.438 inchMax Bore (C2, Split Clamp), Keyway : 88mmMax Bore (C2, Split Clamp), no-Key 3.750 inchMax Bore (C2, Split Clamp), no-Key 95mmMaximum Speed: 4,502 RPMTorsional Stiffness: 161,541 In-lbs/degreeTorsional Stiffness : 1,045,833 Nm/radAngular Misalignment: 0.5°Axial Misalignment: 0.033 inchAxial Misalignment : 0.84 mmParallel Misalignment: 0.004 inchParallel Misalignment : 0.09 mmHub OD (D): 6.50 inchHub OD (D) : 165 mmHub Length (C): 2.500 inchHub Length (C) : 63.5 mmOverall Length (OAL): 5.69 inchOverall Length (OAL) : 145 mmDisc Pack ID (Di): 3.34 inchDisc Pack ID (Di) : 84.8 mmDisc Pack Thickness (DT): 0.584 inchDisc Pack Thickness (DT) : 14.8 mmAdaptor Model: AM140Adaptor Diameter (AD): 10.02 inchAdaptor Diameter (AD) : 255 mmAdaptor Length (AL): 2.61 inchAdaptor Length (AL) : 66.3 mmPilot Diameter (ØP): 7.0866 / 7.0882 inchPilot Diameter (ØP) : 180.000 / 180.040 mmPilot Depth (PD): 0.39 inchPilot Depth (PD) : 10.0 mmAdaptor Plate Thickness (AT): 0.99 inchAdaptor Plate Thickness (AT) : 25.2 mmBolt Hole Diameter (ØBH): 0.67 inchBolt Hole Diameter (ØBH) : 17.0 mmBolt Circle (ØBC): 5.51 inchBolt Circle (ØBC) : 140 mmAdaptor Plate ID (ID): 3.54 inchAdaptor Plate ID (ID) : 90.0 mmWeight (max bore): 51.7 lbsWeight (max bore) : 23.5 kgInertia (max bore): 680.0 lb-in²Inertia (max bore) : 1,990 kg-cm²
Hub Style "C1" = Single-Bolt Integral Clamp Hub Hub Style "C2" = Two-Bolt Split Clamp Hub
Clamp x GB Adaptor 12A165-C-AM Configuration
Clamp Option 1
C2
Bore Size D1
1.3750"
1.4375"
1.5000"
1.5625"
1.6250"
1.6875"
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.1875"
2.2500"
2.3125"
2.3750"
2.4375"
2.5000"
2.5625"
2.6250"
2.6875"
2.7500"
2.8125"
2.8750"
2.9375"
3.0000"
3.0625"
3.1250"
3.1875"
3.2500"
3.3125"
3.3750"
3.4375"
3.5000"
3.5625"
3.6250"
3.6875"
3.7500"
35 mm
36 mm
37 mm
38 mm
39 mm
40 mm
41 mm
42 mm
43 mm
44 mm
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
62 mm
63 mm
64 mm
65 mm
66 mm
68 mm
70 mm
72 mm
75 mm
76 mm
78 mm
80 mm
82 mm
85 mm
88 mm
90 mm
92 mm
95 mm
d1 Keyway Option
YES
NO
Single Flex Power Clamp x Adaptor
Part Number: 12A165-C-AM

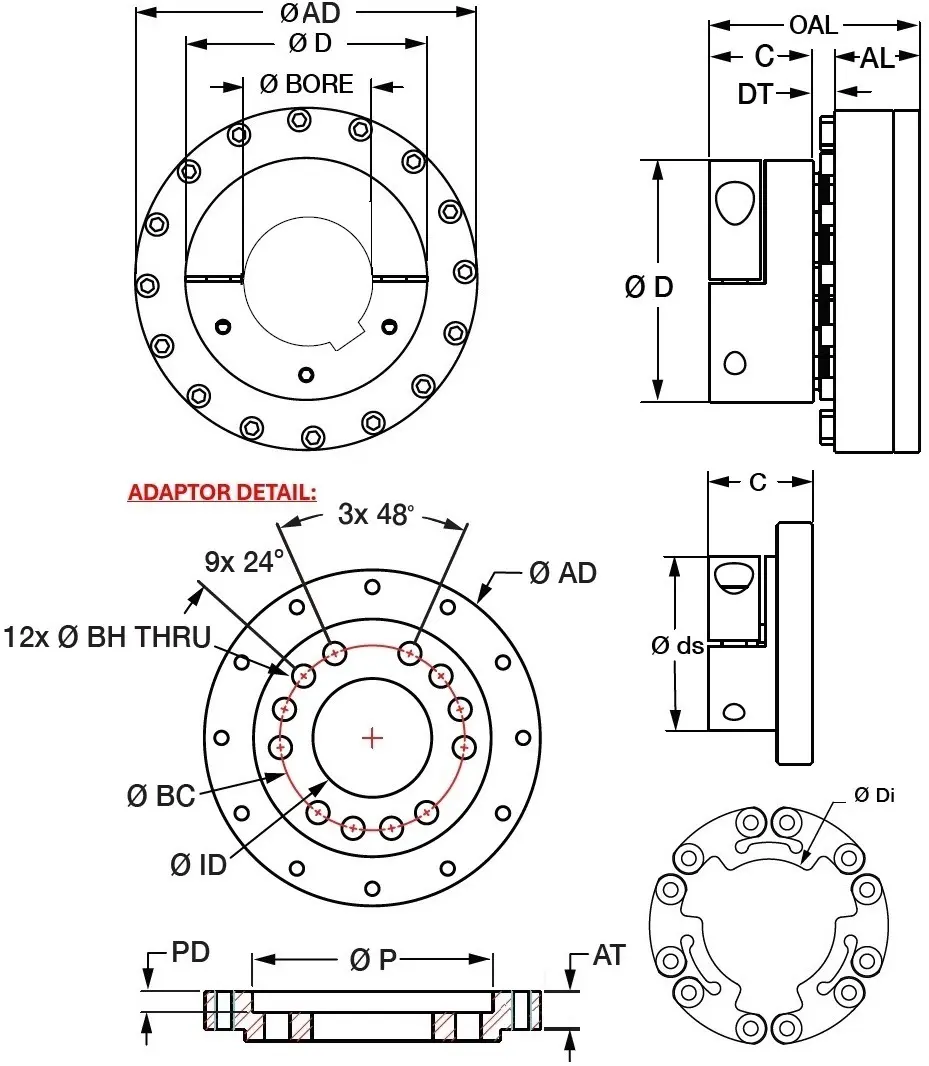

Single Flex Power Clamp x Adaptor 12A165-C-AM Specifications
Click for English
Click for Metric
Part Number 12A165-C-AM Continuous Rated Torque: 27,500 in-lbs
Continuous Rated Torque : 3,107 Nm
Peak Rated Torque: 55,000 in-lbs
Peak Rated Torque : 6,215 Nm
Max Bore (C2, Split Clamp), Keyway: 3.438 inch
Max Bore (C2, Split Clamp), Keyway : 88mm
Max Bore (C2, Split Clamp), no-Key 3.750 inch
Max Bore (C2, Split Clamp), no-Key 95mm
Maximum Speed: 4,502 RPM
Torsional Stiffness: 161,541 In-lbs/degree
Torsional Stiffness : 1,045,833 Nm/rad
Angular Misalignment: 0.5°
Axial Misalignment: 0.033 inch
Axial Misalignment : 0.84 mm
Parallel Misalignment: 0.004 inch
Parallel Misalignment : 0.09 mm
Hub OD (D): 6.50 inch
Hub OD (D) : 165 mm
Hub Length (C): 2.500 inch
Hub Length (C) : 63.5 mm
Overall Length (OAL): 5.69 inch
Overall Length (OAL) : 145 mm
Disc Pack ID (Di): 3.34 inch
Disc Pack ID (Di) : 84.8 mm
Disc Pack Thickness (DT): 0.584 inch
Disc Pack Thickness (DT) : 14.8 mm
Adaptor Model: AM140
Adaptor Diameter (AD): 10.02 inch
Adaptor Diameter (AD) : 255 mm
Adaptor Length (AL): 2.61 inch
Adaptor Length (AL) : 66.3 mm
Pilot Diameter (ØP): 7.0866 / 7.0882 inch
Pilot Diameter (ØP) : 180.000 / 180.040 mm
Pilot Depth (PD): 0.39 inch
Pilot Depth (PD) : 10.0 mm
Adaptor Plate Thickness (AT): 0.99 inch
Adaptor Plate Thickness (AT) : 25.2 mm
Bolt Hole Diameter (ØBH): 0.67 inch
Bolt Hole Diameter (ØBH) : 17.0 mm
Bolt Circle (ØBC): 5.51 inch
Bolt Circle (ØBC) : 140 mm
Adaptor Plate ID (ID): 3.54 inch
Adaptor Plate ID (ID) : 90.0 mm
Weight (max bore): 51.7 lbs
Weight (max bore) : 23.5 kg
Inertia (max bore): 680.0 lb-in²
Inertia (max bore) : 1,990 kg-cm²
