Double Flex Power Clamp x Clamp

Part Number: 8P55-C-C


Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Quantity:

Specifications
Click for English
Click for Metric
  • Continuous Rated Torque: 371 in-lbs
  • Continuous Rated Torque : 42 Nm
  • Peak Rated Torque: 742 in-lbs
  • Peak Rated Torque : 84 Nm
  • Max Bore (C1, Integral Clamp), Keyway: 1.125 inch
  • Max Bore (C1, Integral Clamp), Keyway : 28mm
  • Max Bore (C1, Integral Clamp), no-Key
    (See Transmittable Torque Chart):     1.125 inch
  • Max Bore (C1, Integral Clamp), no-Key
    (See Transmittable Torque Chart) :     28mm
  • Max Bore (C2, Split Clamp), Keyway: 1.125 inch
  • Max Bore (C2, Split Clamp), Keyway : 28mm
  • Max Bore (C2, Split Clamp), no-Key
    (See Transmittable Torque Chart):     1.125 inch
  • Max Bore (C2, Split Clamp), no-Key
    (See Transmittable Torque Chart) :     28mm
  • Maximum Speed: 20,790 RPM
  • Torsional Stiffness: 2,033 In-lbs/degree
  • Torsional Stiffness : 13,162 Nm/rad
  • Angular Misalignment: 0.75°
  • Axial Misalignment: 0.038 inch
  • Axial Misalignment : 0.97 mm
  • Parallel Misalignment: 0.010 inch
  • Parallel Misalignment : 0.25 mm
  • Hub OD (D): 2.17 inch
  • Hub OD (D) : 55 mm
  • Reduced Hub OD (Integral Clamp), ds: N/A
  • Reduced Hub OD (Integral Clamp), ds : N/A
  • Hub Length (C): 1.000 inch
  • Hub Length (C) : 25.4 mm
  • Distance Between Shaft Ends (DBSE): 1.14 inch
  • Distance Between Shaft Ends (DBSE) : 29.0 mm
  • Overall Length (OAL): 3.14 inch
  • Overall Length (OAL) : 79.8 mm
  • Disc Pack ID (Di): 0.98 inch
  • Disc Pack ID (Di) : 24.9 mm
  • Disc Pack Thickness (DT): 0.321 inch
  • Disc Pack Thickness (DT) : 8.2 mm
  • Weight: See Catalog
  • Weight : See Catalog
  • Inertia: See Catalog
  • Inertia : See Catalog

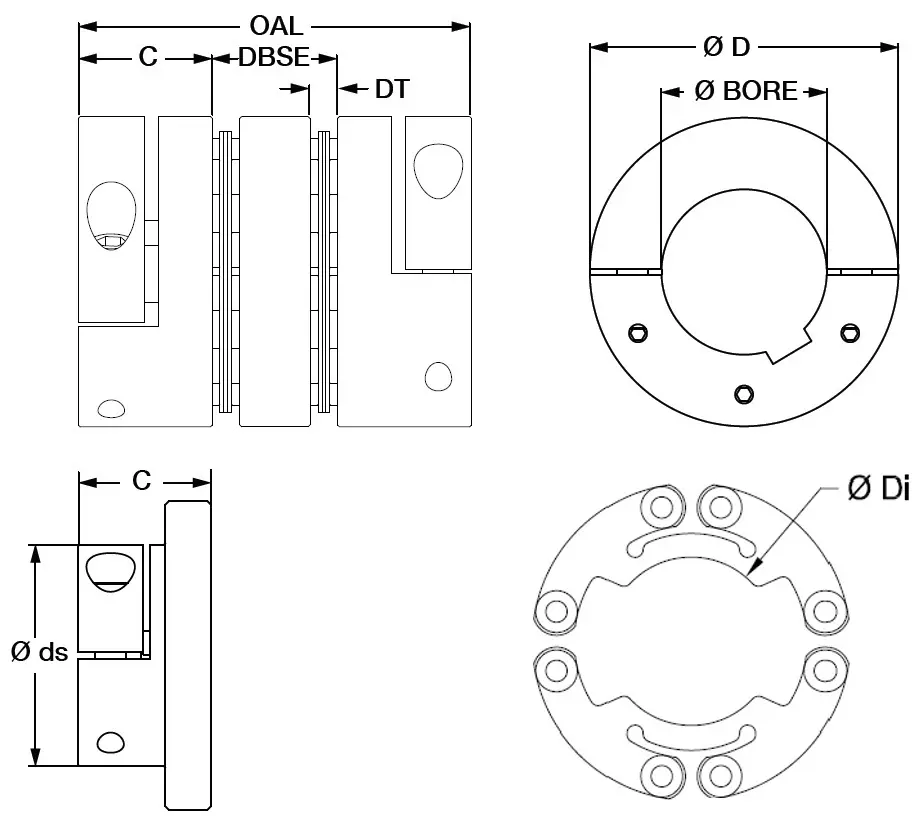

Double-Flex Clamp-Clamp_8bolt


Configuration Note:

  • Hub Style "C1" = Single-Bolt Integral Clamp Hub
  • Hub Style "C2" = Two-Bolt Split Clamp Hub

Adobe 3D PDF help
Clamp x Clamp 8P55-C-C Configuration
Clamp Option 1
Bore Size D1
d1 Keyway Option
Clamp Option 2
Bore Size D2
d2 Keyway Option

Double Flex Power Clamp x Clamp
