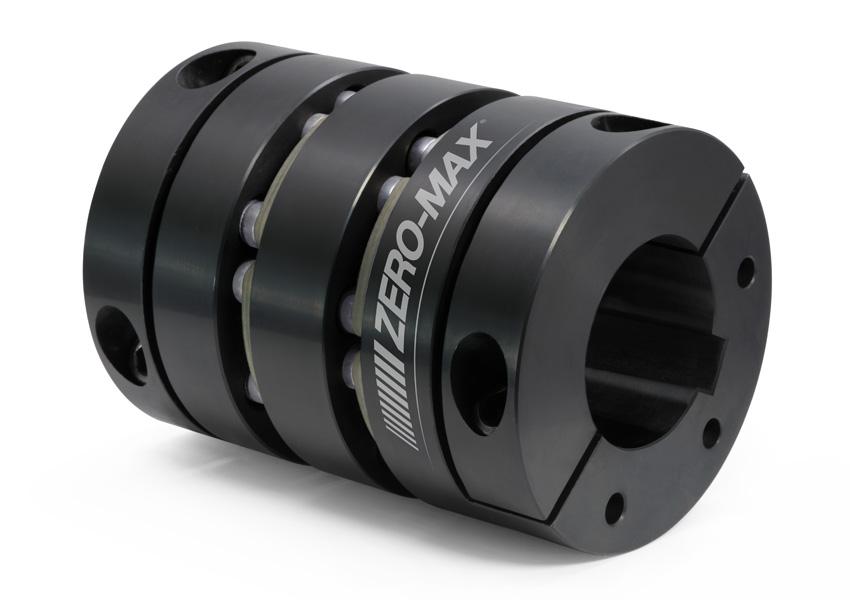

Double Flex Power Clamp x Clamp
Part Number: 12P215-C-C
Warning : array_merge(): Argument #2 is not an array in
/data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line
35
Click image to enlarge
Specifications
Click for English
Click for Metric
Continuous Rated Torque: 65,000 in-lbsContinuous Rated Torque : 7,345 NmPeak Rated Torque: 130,000 in-lbsPeak Rated Torque : 14,689 NmMax Bore (C2, Split Clamp), Keyway: 4.500 inchMax Bore (C2, Split Clamp), Keyway : 120mmMax Bore (C2, Split Clamp), no-Key 5.188 inchMax Bore (C2, Split Clamp), no-Key 130mmMaximum Speed: 5,326 RPMTorsional Stiffness: 206,268 In-lbs/degreeTorsional Stiffness : 1,335,400 Nm/radAngular Misalignment: 0.5°Axial Misalignment: 0.082 inchAxial Misalignment : 2.08 mmParallel Misalignment: 0.026 inchParallel Misalignment : 0.66 mmHub OD (D): 8.47 inchHub OD (D) : 215 mmHub Length (C): 3.000 inchHub Length (C) : 76.2 mmDistance Between Shaft Ends (DBSE): 3.78 inchDistance Between Shaft Ends (DBSE) : 96.0 mmOverall Length (OAL): 9.78 inchOverall Length (OAL) : 248 mmDisc Pack ID (Di): 4.45 inchDisc Pack ID (Di) : 113 mmDisc Pack Thickness (DT): 0.806 inchDisc Pack Thickness (DT) : 20.5 mmWeight (max bores): 80.6 lbsWeight (max bores) : 36.5 kgInertia (max bores): 961.9 lb-in²Inertia (max bores) : 2,815 kg-cm²

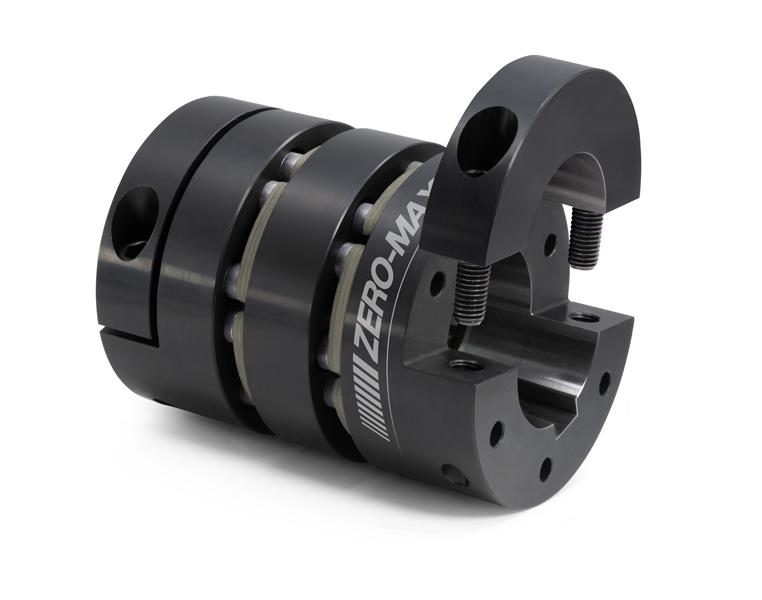

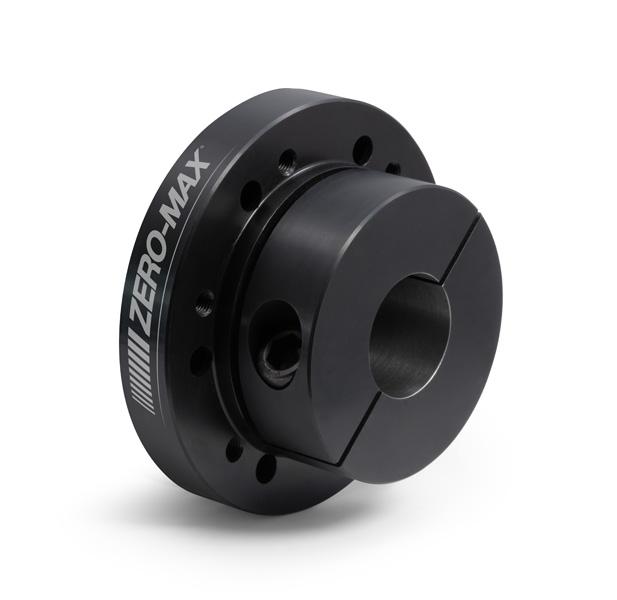

Hub Style "C1" = Single-Bolt Integral Clamp Hub Hub Style "C2" = Two-Bolt Split Clamp Hub
Clamp x Clamp 12P215-C-C Configuration
Clamp Option 1
C2
Bore Size D1
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.1875"
2.2500"
2.3125"
2.3750"
2.4375"
2.5000"
2.5625"
2.6250"
2.6875"
2.7500"
2.8125"
2.8750"
2.9375"
3.0000"
3.0625"
3.1250"
3.1875"
3.2500"
3.3125"
3.3750"
3.4375"
3.5000"
3.5625"
3.6250"
3.6875"
3.7500"
3.8125"
3.8750"
3.9375"
4.0000"
4.0625"
4.1250"
4.1875"
4.2500"
4.3125"
4.3750"
4.4375"
4.5000"
4.5625"
4.6250"
4.6875"
4.7500"
4.8125"
4.8750"
4.9375"
5.0000"
5.0625"
5.1250"
5.1875"
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
62 mm
63 mm
64 mm
65 mm
66 mm
68 mm
70 mm
72 mm
75 mm
76 mm
78 mm
80 mm
82 mm
85 mm
88 mm
90 mm
92 mm
95 mm
98 mm
100 mm
102 mm
105 mm
108 mm
110 mm
115 mm
120 mm
130 mm
d1 Keyway Option
YES
NO
Clamp Option 2
C2
Bore Size D2
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.1875"
2.2500"
2.3125"
2.3750"
2.4375"
2.5000"
2.5625"
2.6250"
2.6875"
2.7500"
2.8125"
2.8750"
2.9375"
3.0000"
3.0625"
3.1250"
3.1875"
3.2500"
3.3125"
3.3750"
3.4375"
3.5000"
3.5625"
3.6250"
3.6875"
3.7500"
3.8125"
3.8750"
3.9375"
4.0000"
4.0625"
4.1250"
4.1875"
4.2500"
4.3125"
4.3750"
4.4375"
4.5000"
4.5625"
4.6250"
4.6875"
4.7500"
4.8125"
4.8750"
4.9375"
5.0000"
5.0625"
5.1250"
5.1875"
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
62 mm
63 mm
64 mm
65 mm
66 mm
68 mm
70 mm
72 mm
75 mm
76 mm
78 mm
80 mm
82 mm
85 mm
88 mm
90 mm
92 mm
95 mm
98 mm
100 mm
102 mm
105 mm
108 mm
110 mm
115 mm
120 mm
130 mm
d2 Keyway Option
YES
NO
Double Flex Power Clamp x Clamp
Part Number: 12P215-C-C
Double Flex Power Clamp x Clamp 12P215-C-C Specifications
Click for English
Click for Metric
Part Number 12P215-C-C Continuous Rated Torque: 65,000 in-lbs
Continuous Rated Torque : 7,345 Nm
Peak Rated Torque: 130,000 in-lbs
Peak Rated Torque : 14,689 Nm
Max Bore (C2, Split Clamp), Keyway: 4.500 inch
Max Bore (C2, Split Clamp), Keyway : 120mm
Max Bore (C2, Split Clamp), no-Key 5.188 inch
Max Bore (C2, Split Clamp), no-Key 130mm
Maximum Speed: 5,326 RPM
Torsional Stiffness: 206,268 In-lbs/degree
Torsional Stiffness : 1,335,400 Nm/rad
Angular Misalignment: 0.5°
Axial Misalignment: 0.082 inch
Axial Misalignment : 2.08 mm
Parallel Misalignment: 0.026 inch
Parallel Misalignment : 0.66 mm
Hub OD (D): 8.47 inch
Hub OD (D) : 215 mm
Hub Length (C): 3.000 inch
Hub Length (C) : 76.2 mm
Distance Between Shaft Ends (DBSE): 3.78 inch
Distance Between Shaft Ends (DBSE) : 96.0 mm
Overall Length (OAL): 9.78 inch
Overall Length (OAL) : 248 mm
Disc Pack ID (Di): 4.45 inch
Disc Pack ID (Di) : 113 mm
Disc Pack Thickness (DT): 0.806 inch
Disc Pack Thickness (DT) : 20.5 mm
Weight (max bores): 80.6 lbs
Weight (max bores) : 36.5 kg
Inertia (max bores): 961.9 lb-in²
Inertia (max bores) : 2,815 kg-cm²
