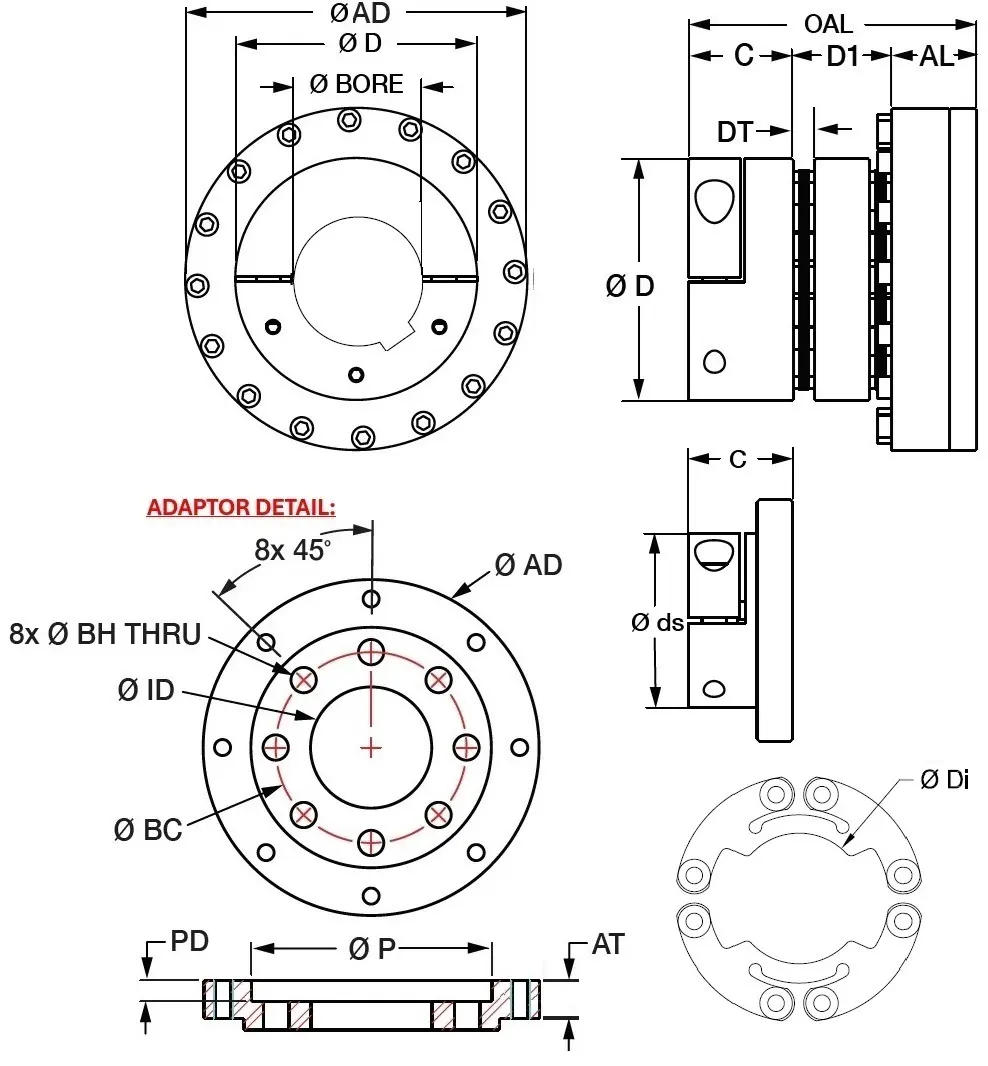

Double Flex Power Clamp x Adaptor
Part Number: 8P67-C-AM
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Specifications
Click for English
Click for Metric
- Continuous Rated Torque: 778 in-lbs
- Continuous Rated Torque : 88 Nm
- Peak Rated Torque: 1,556 in-lbs
- Peak Rated Torque : 176 Nm
- Max Bore (C1, Integral Clamp), Keyway: 1.375 inch
- Max Bore (C1, Integral Clamp), Keyway : 35mm
- Max Bore (C1, Integral Clamp), no-Key
(See Transmittable Torque Chart): 1.375 inch - Max Bore (C1, Integral Clamp), no-Key
(See Transmittable Torque Chart) : 35mm - Max Bore (C2, Split Clamp), Keyway: 1.375 inch
- Max Bore (C2, Split Clamp), Keyway : 35mm
- Max Bore (C2, Split Clamp), no-Key
(See Transmittable Torque Chart): 1.375 inch - Max Bore (C2, Split Clamp), no-Key
(See Transmittable Torque Chart) : 35mm - Maximum Speed: 13,115 RPM
- Torsional Stiffness: 2,660 In-lbs/degree
- Torsional Stiffness : 17,221 Nm/rad
- Angular Misalignment: 0.75°
- Axial Misalignment: 0.056 inch
- Axial Misalignment : 1.42 mm
- Parallel Misalignment: 0.013 inch
- Parallel Misalignment : 0.33 mm
- Hub OD (D): 2.64 inch
- Hub OD (D) : 67 mm
- Reduced Hub OD (Integral Clamp), ds: N/A
- Reduced Hub OD (Integral Clamp), ds : N/A
- Hub Length (C): 1.250 inch
- Hub Length (C) : 31.8 mm
- Dimension (D1): 1.33 inch
- Dimension (D1) : 33.8 mm
- Overall Length (OAL): 3.64 inch
- Overall Length (OAL) : 92.5 mm
- Disc Pack ID (Di): 1.25 inch
- Disc Pack ID (Di) : 31.8 mm
- Disc Pack Thickness (DT): 0.351 inch
- Disc Pack Thickness (DT) : 8.9 mm
- Adaptor Model: AM50
- Adaptor Diameter (AD): 3.44 inch
- Adaptor Diameter (AD) : 87.4 mm
- Adaptor Length (AL): 1.06 inch
- Adaptor Length (AL) : 26.9 mm
- Pilot Diameter (ØP): 2.4803 / 2.4813 inch
- Pilot Diameter (ØP) : 63.000 / 63.025 mm
- Pilot Depth (PD): 0.22 inch
- Pilot Depth (PD) : 5.5 mm
- Adaptor Plate Thickness (AT): 0.39 inch
- Adaptor Plate Thickness (AT) : 10.0 mm
- Bolt Hole Diameter (ØBH): 0.26 inch
- Bolt Hole Diameter (ØBH) : 6.6 mm
- Bolt Circle (ØBC): 1.97 inch
- Bolt Circle (ØBC) : 50.0 mm
- Adaptor Plate ID (ID): 1.25 inch
- Adaptor Plate ID (ID) : 31.8 mm
- Weight: See Catalog
- Weight : See Catalog
- Inertia: See Catalog
- Inertia : See Catalog
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub
| Through-Shaft Torq-Tenders with Actuating Disc - Type BD 8P67-C-AM Configuration | |
| Clamp Option 1 | |
| Bore Size D1 | |
| d1 Keyway Option | |
