Double Flex Clamp Hub x Adaptor Mount Power Series Composite Disc Couplings
Part Number: 12P85-C-AM

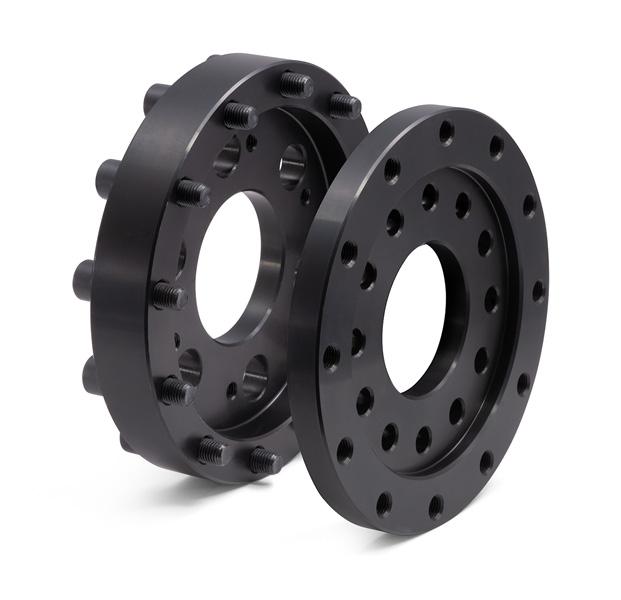

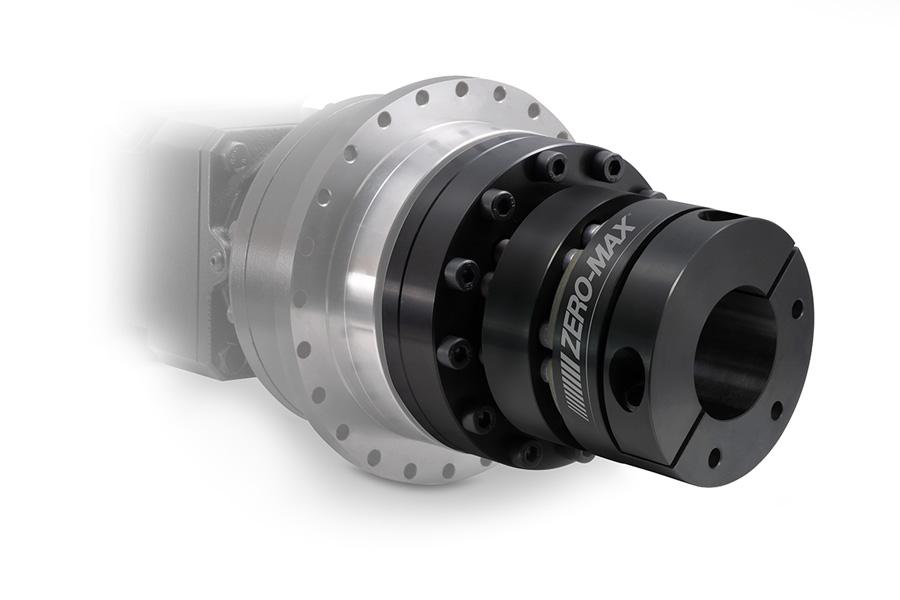

Click image to enlarge

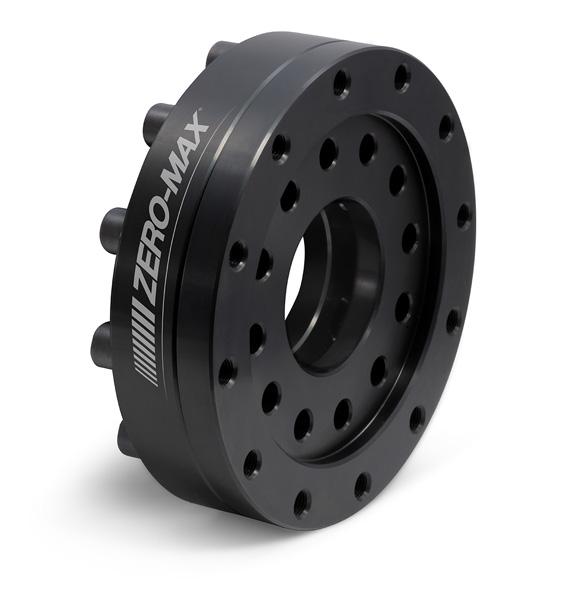

Click image to enlarge
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub
Technical Resources

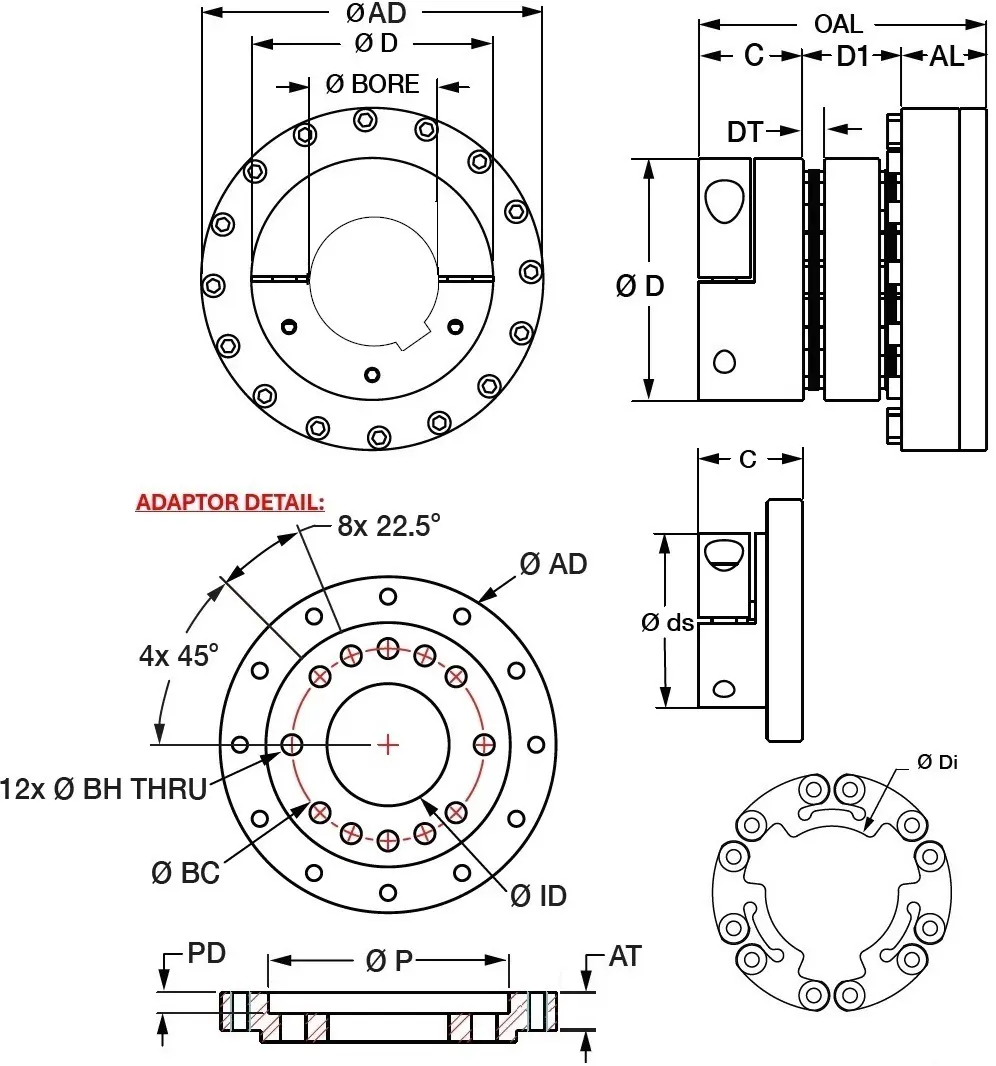

| Clamp x GB Adaptor 12P85-C-AM Configuration | |
| Clamp Option 1 | |
| Bore Size D1 | |
| d1 Keyway Option | |
12P85-C-AM Specifications
Click for English
Click for Metric
| Part Number | 12P85-C-AM |
| Continuous Rated Torque: | 2,768 in-lbs |
| Continuous Rated Torque : | 313 Nm |
| Peak Rated Torque: | 5,536 in-lbs |
| Peak Rated Torque : | 626 Nm |
| Max Bore (C1, Integral Clamp), Keyway: | 1.063 inch |
| Max Bore (C1, Integral Clamp), Keyway : | 27mm |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart): | 1.063 inch |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart) : | 27mm |
| Max Bore (C2, Split Clamp), Keyway: | 1.563 inch |
| Max Bore (C2, Split Clamp), Keyway : | 40mm |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart): | 1.938 inch |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart) : | 50mm |
| Maximum Speed: | 9,877 RPM |
| Torsional Stiffness: | 7,738 In-lbs/degree |
| Torsional Stiffness : | 50,097 Nm/rad |
| Angular Misalignment: | 0.5° |
| Axial Misalignment: | 0.038 inch |
| Axial Misalignment : | 0.97 mm |
| Parallel Misalignment: | 0.009 inch |
| Parallel Misalignment : | 0.23 mm |
| Hub OD (D): | 3.35 inch |
| Hub OD (D) : | 85 mm |
| Reduced Hub OD (Integral Clamp), ds: | 2.29 inch |
| Reduced Hub OD (Integral Clamp), ds : | 58.2 mm |
| Hub Length (C): | 1.313 inch |
| Hub Length (C) : | 33.4 mm |
| Dimension (D1): | 1.35 inch |
| Dimension (D1) : | 34.3 mm |
| Overall Length (OAL): | 3.88 inch |
| Overall Length (OAL) : | 98.6 mm |
| Disc Pack ID (Di): | 1.63 inch |
| Disc Pack ID (Di) : | 41.4 mm |
| Disc Pack Thickness (DT): | 0.281 inch |
| Disc Pack Thickness (DT) : | 7.1 mm |
| Adaptor Model: | AM63 |
| Adaptor Diameter (AD): | 4.33 inch |
| Adaptor Diameter (AD) : | 110 mm |
| Adaptor Length (AL): | 1.22 inch |
| Adaptor Length (AL) : | 31.0 mm |
| Pilot Diameter (ØP): | 3.1496 / 3.1506 inch |
| Pilot Diameter (ØP) : | 80.000 / 80.025 mm |
| Pilot Depth (PD): | 0.22 inch |
| Pilot Depth (PD) : | 5.5 mm |
| Adaptor Plate Thickness (AT): | 0.94 inch |
| Adaptor Plate Thickness (AT) : | 23.9 mm |
| Bolt Hole Diameter (ØBH): | 0.26 inch |
| Bolt Hole Diameter (ØBH) : | 6.6 mm |
| Bolt Circle (ØBC): | 2.48 inch |
| Bolt Circle (ØBC) : | 63.0 mm |
| Adaptor Plate ID (ID): | 1.58 inch |
| Adaptor Plate ID (ID) : | 40.0 mm |
| Weight: | See Catalog |
| Weight : | See Catalog |
| Inertia: | See Catalog |
| Inertia : | See Catalog |
