Double Flex Power Clamp x Adaptor
Part Number: 12P105-C-AM
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Specifications
Click for English
Click for Metric
- Continuous Rated Torque: 5,800 in-lbs
- Continuous Rated Torque : 655 Nm
- Peak Rated Torque: 11,600 in-lbs
- Peak Rated Torque : 1,311 Nm
- Max Bore (C1, Integral Clamp), Keyway: 1.250 inch
- Max Bore (C1, Integral Clamp), Keyway : 32mm
- Max Bore (C1, Integral Clamp), no-Key
(See Transmittable Torque Chart): 1.250 inch - Max Bore (C1, Integral Clamp), no-Key
(See Transmittable Torque Chart) : 32mm - Max Bore (C2, Split Clamp), Keyway: 2.125 inch
- Max Bore (C2, Split Clamp), Keyway : 55mm
- Max Bore (C2, Split Clamp), no-Key
(See Transmittable Torque Chart): 2.375 inch - Max Bore (C2, Split Clamp), no-Key
(See Transmittable Torque Chart) : 60mm - Maximum Speed: 8,308 RPM
- Torsional Stiffness: 16,461 In-lbs/degree
- Torsional Stiffness : 106,570 Nm/rad
- Angular Misalignment: 0.5°
- Axial Misalignment: 0.044 inch
- Axial Misalignment : 1.12 mm
- Parallel Misalignment: 0.012 inch
- Parallel Misalignment : 0.30 mm
- Hub OD (D): 4.13 inch
- Hub OD (D) : 105 mm
- Reduced Hub OD (Integral Clamp), ds: 2.89 inch
- Reduced Hub OD (Integral Clamp), ds : 73.4 mm
- Hub Length (C): 1.875 inch
- Hub Length (C) : 47.6 mm
- Dimension (D1): 1.84 inch
- Dimension (D1) : 46.6 mm
- Overall Length (OAL): 5.05 inch
- Overall Length (OAL) : 128 mm
- Disc Pack ID (Di): 2.05 inch
- Disc Pack ID (Di) : 52.1 mm
- Disc Pack Thickness (DT): 0.426 inch
- Disc Pack Thickness (DT) : 10.8 mm
- Adaptor Model: AM80
- Adaptor Diameter (AD): 5.43 inch
- Adaptor Diameter (AD) : 138 mm
- Adaptor Length (AL): 1.34 inch
- Adaptor Length (AL) : 34.0 mm
- Pilot Diameter (ØP): 3.9370 / 3.9384 inch
- Pilot Diameter (ØP) : 100.000 / 100.035 mm
- Pilot Depth (PD): 0.22 inch
- Pilot Depth (PD) : 5.5 mm
- Adaptor Plate Thickness (AT): 0.47 inch
- Adaptor Plate Thickness (AT) : 12.0 mm
- Bolt Hole Diameter (ØBH): 0.33 inch
- Bolt Hole Diameter (ØBH) : 8.4 mm
- Bolt Circle (ØBC): 3.15 inch
- Bolt Circle (ØBC) : 80.0 mm
- Adaptor Plate ID (ID): 1.97 inch
- Adaptor Plate ID (ID) : 50.0 mm
- Weight: See Catalog
- Weight : See Catalog
- Inertia: See Catalog
- Inertia : See Catalog
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub

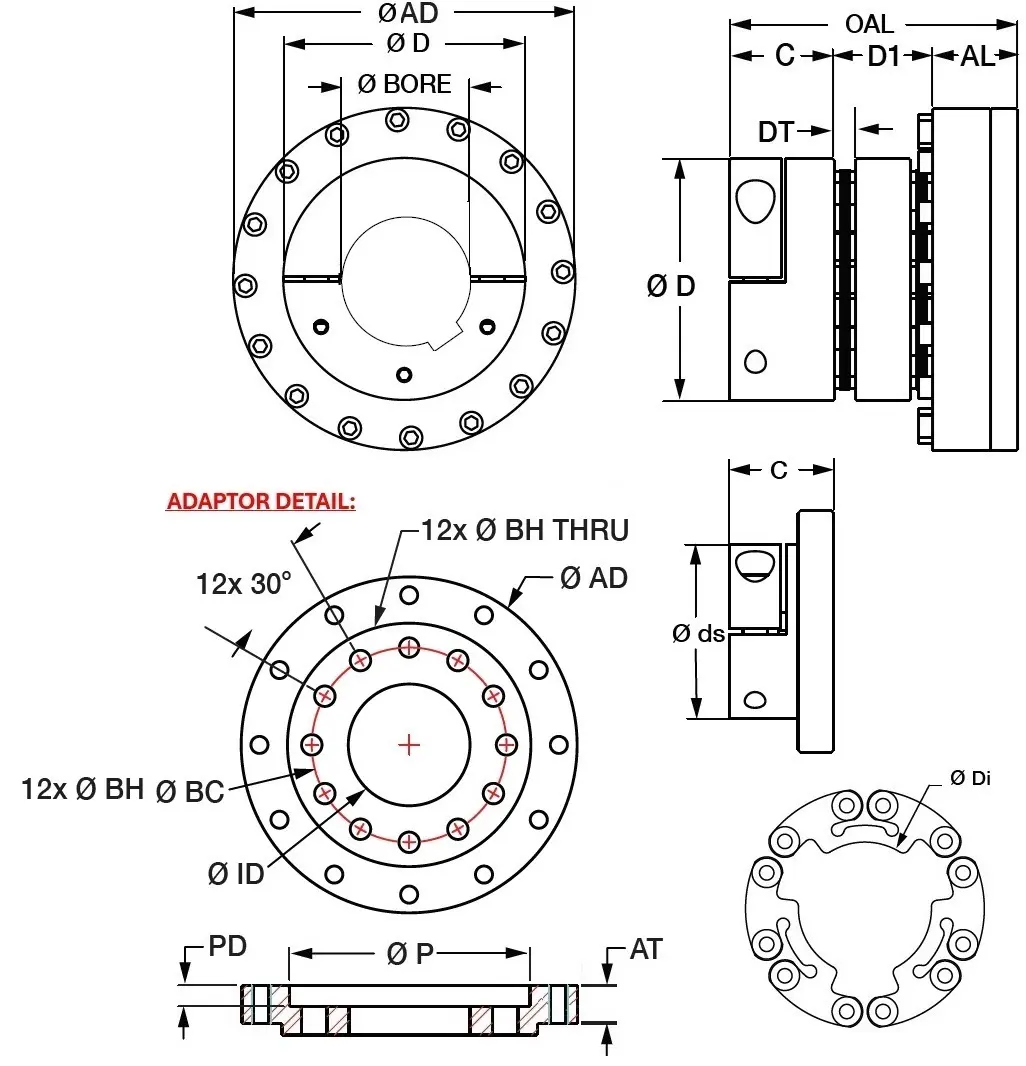

| End-of-Shaft Mount Torq-Tenders with Actuating Disc - Type SD 12P105-C-AM Configuration | |
