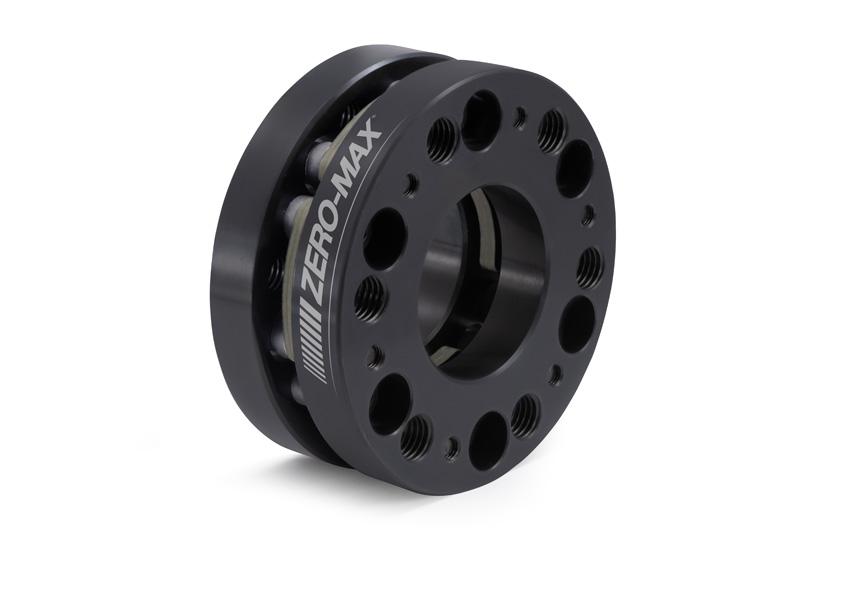

Single-Flex Power-Series Flange Hub CD® Couplings
Click image to enlarge
The Power-Series is the latest addition to the field-proven Composite Disc (CD) Coupling line from Zero-Max that Engineers around the World rely on. The unique design captures the benefits of our proven composite disc-pack along with maximum power density – allowing for higher torque in a smaller size than the traditional CD Flexible Shaft Coupling line. These CD Coupling Power-Series solutions are ideal for high-performance and demanding applications by featuring zero-backlash operation, high torsional stiffness, damping characteristics, and long maintenance-free operation.
The Flange Configuration features a standard flange hub on each end that can be attached to matching system outputs for the most compact solution possible. This hub can also be integrated with any other hub option on the other end upon request. Customized Flange Hubs are also available. Contact the factory for further details.
The Flange Configuration features a standard flange hub on each end that can be attached to matching system outputs for the most compact solution possible. This hub can also be integrated with any other hub option on the other end upon request. Customized Flange Hubs are also available. Contact the factory for further details.
Flange Hub Coupling Advantages
The Single-Flex Power Serie CD Couplings offers advantages including:
- Zero Backlash
- High Power Density
- High Torsional Stiffness
- Excellent for Reversing Loads
- Excellent for 24/7 Reversal of Loads Without Fatigue
- Smooth Operating at High Speeds
- Compact Size
Other Hub Styles available include:
- Clamping Hubs
- Shrink Disc Hubs
- Adaptor Mounts (Compatible with ISO 9409-1. Mount to gearboxes, motors, robotic equipment, etc.)
- Custom Hubs (contact factory)
Locate your nearest sales representative, request a quote, or contact us for more information or to discuss your applications with one of our engineers.
