Single Set Screw Steel Hubs
Part Number: 6A18
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Specifications
Click for English
Click for Metric
- Continuous Rated Torque: 180 in-lbs
- Continuous Rated Torque : 20 Nm
- Peak Rated Torque: 360 in-lbs
- Peak Rated Torque : 40 Nm
- Maximum Bore (Ea) A Hub: 0.625 inches
- Maximum Bore (Ea) A Hub : 16 mm
- Maximum Speed: 14,000 RPM
- Torsional Stiffness: 1,800 In-lbs/degree
- Torsional Stiffness : 11,650 Nm/rad
- Parallel Misalignment: 0.004 inches
- Parallel Misalignment : 0.10 mm
- Angular Misalignment: 3 °
- Axial Misalignment: 0.030 inches
- Axial Misalignment : 0.8 mm
- Weight at Max Bore (A Hubs): 0.43 lbs
- Weight at Max Bore (A Hubs) : 0.20 kg
- Inertia at Max Bore (A Hubs): 0.16 lb-in²
- Inertia at Max Bore (A Hubs) : 0.47 kg-cm²

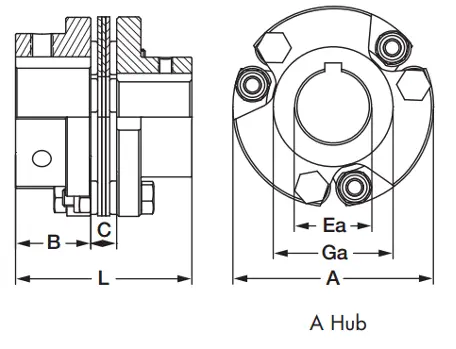

- Outside Diameter (A): 1.85 inches
- Outside Diameter (A) : 47.0 mm
- Overall Length (L): 1.53 inches
- Overall Length (L) : 38.9 mm
- Hub Length (B): 0.625 inches
- Hub Length (B) : 15.9 mm
- Distance Between Shaft Ends (C): 0.28 inches
- Distance Between Shaft Ends (C) : 7.0 mm
- Inside Diameter of Disc-Pack (H): 0.79 inches
- Inside Diameter of Disc-Pack (H) : 20.1 mm
- A Hub Body Diameter (Ga): 1.13 Inches
- A Hub Body Diameter (Ga) : 28.7 mm
| Single Set Screw Type Steel Hubs 6a18 Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
