Single Disc Control Flex Couplings

Part Number: C016P

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Max Continuous Torque: 31 in-lbs
  • Max Continuous Torque : 3.50 Nm
  • Max Peak Torque: 45 in-lbs
  • Max Peak Torque : 5.08 Nm
  • Minimum Bore: 0.125 inches
  • Minimum Bore : 4 mm
  • Maximum Bore: 0.750 inches
  • Maximum Bore : 20 mm
  • Maximum Speed: 8,000 RPM
  • Max Parallel Misalignment: 0.028 inches
  • Max Parallel Misalignment : 0.7 mm
  • Max Angular Misalignment: 1.5°
  • Maximum Axial Misalignment: 0.021 inches
  • Maximum Axial Misalignment : 0.5 mm
  • Torsional Stiffness: 16.3 In-lbs/degree
  • Torsional Stiffness : 106 Nm/rad
  • Net Weight: 0.135 lbs
  • Net Weight : 0.061 kg
  • Inertia (WK²): 0.038 lb-in²
  • Inertia (WK²) : 0.111 kg-cm²
  • Outside Diameter (D2): 1.457 inches
  • Outside Diameter (D2) : 37.0 mm
  • Overall Length (L): 1.17 inches
  • Overall Length (L) : 29.7 mm
  • Hub Length (L1): 0.394 inches
  • Hub Length (L1) : 10.0 mm
  • Distance Between Shaft Ends (L2): 0.38 inches
  • Distance Between Shaft Ends (L2) : 9.7 mm
  • Inside Diameter of Disc (D4): 0.56 inches
  • Inside Diameter of Disc (D4) : 14.2 mm

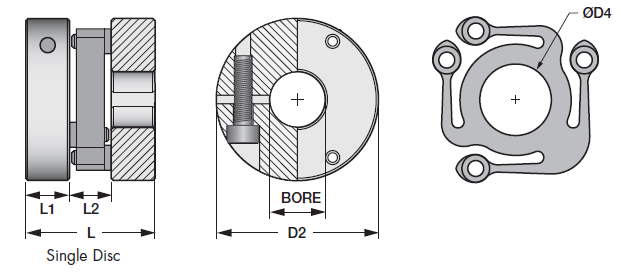

Single Disc Control Flex Couplings

Adobe 3D PDF help
Configuration
Bore Size D1
Bore Size D2
