Single Disc Control Flex Couplings

Adobe 3D PDF help
Configuration
Bore Size D1
Bore Size D2

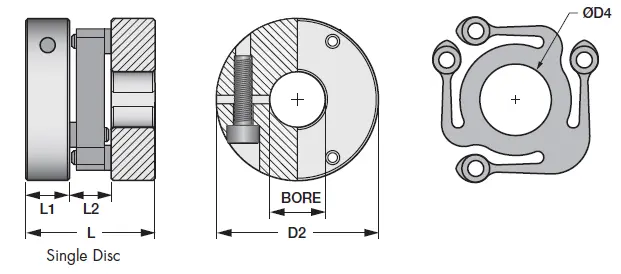

Single Disc Control Flex Couplings

Part Number: C008P

Specifications
Click for English
Click for Metric
  • Max Continuous Torque: 4 in-lbs
  • Max Continuous Torque : 0.45 Nm
  • Max Peak Torque: 6 in-lbs
  • Max Peak Torque : 0.68 Nm
  • Minimum Bore: 0.125 inches
  • Minimum Bore : 3 mm
  • Maximum Bore: 0.375 inches
  • Maximum Bore : 10 mm
  • Maximum Speed: 12,000 RPM
  • Max Parallel Misalignment: 0.013 inches
  • Max Parallel Misalignment : 0.3 mm
  • Max Angular Misalignment: 1.5°
  • Maximum Axial Misalignment: 0.010 inches
  • Maximum Axial Misalignment : 0.3 mm
  • Torsional Stiffness:
