Set Screw Style Hub

Part Number: 6F67

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Continuous Rated Torque: 10,300 in-lbs
  • Continuous Rated Torque : 1,164 Nm
  • Peak Rated Torque: 20,600 in-lbs
  • Peak Rated Torque : 2,328 Nm
  • Maximum Bore (Ea) A Hub: 2.625 inches
  • Maximum Bore (Ea) A Hub : 65 mm
  • Maximum Bore (Eb) B Hub: 3.375 inches
  • Maximum Bore (Eb) B Hub : 85 mm
  • Maximum Speed: See Catalog (page 17)
  • Torsional Stiffness: See Catalog (page 15)
  • Parallel Misalignment: 0.026 inches/inch of DBSE
  • Parallel Misalignment : 26 mm/Meter of DBSE
  • Angular Misalignment: See Catalog (page 17)
  • Axial Misalignment: 0.30 inches
  • Axial Misalignment : 7.6 mm
  • Weight: See Catalog (page 15)
  • Inertia: See Catalog (page 15)
  • Outside Diameter (A): 6.75 inches
  • Outside Diameter (A) : 171.5 mm
  • Hub Length (B): 2.75 inches
  • Hub Length (B) : 69.9 mm
  • Minimum DBSE (C): 6.62 inches
  • Minimum DBSE (C) : 169 mm
  • Maximum DBSE (C): See Catalog (page 17)
  • Inside Diameter of Disc-Pack (H): 2.72 inches
  • Inside Diameter of Disc-Pack (H) : 69 mm
  • A Hub Body Diameter (Ga): 4.29 inches
  • A Hub Body Diameter (Ga) : 109 mm
  • B Hub Body Diameter (Gb): 5.63 inches
  • B Hub Body Diameter (Gb) : 143 mm

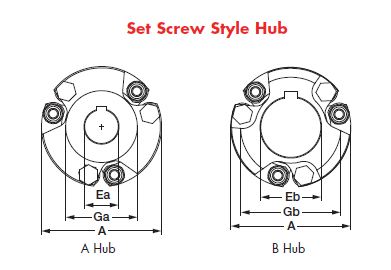

Set Screw Style Hub

Adobe 3D PDF help
Configuration
Bore Size D1
