Schmidt Offset Shaft Couplings

Part Number: L211C

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Performance Factor (P): 34.856 (See Catalog)
  • Maximum Torque Capacity: 119,000 in-lbs
  • Maximum Torque Capacity : 13,445 Nm
  • Practical Speed Limit: 1,000 RPM
  • Min Operating Shaft Offset (S min): 1.120 inches
  • Min Operating Shaft Offset (S min) : 28.45 mm
  • Max Operating Shaft Offset (S max): 4.050 inches
  • Max Operating Shaft Offset (S max) : 102.87 mm
  • Max Shaft Linear Travel (S ml): 7.780 inches
  • Max Shaft Linear Travel (S ml) : 197.6 mm
  • Max Shaft Angular Displacement*: 0.025 inches
  • Max Shaft Angular Displacement* : 0.635 mm
  • Coupling Weight: 112 lbs
  • Coupling Weight : 50.79 kg
  • Inertia (WK²): 2,594 lb-in²
  • Inertia (WK²) : 7,590 kg-cm²

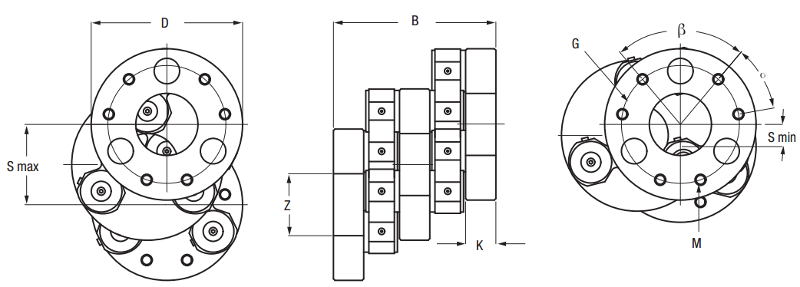

  • End Disc Diameter (D): 11.60 inches
  • End Disc Diameter (D) : 294.6 mm
  • Coupling Length (B): 7.62 (±.032) inches
  • Coupling Length (B) : 193.55 (±.82) mm
  • End Disc Bore (Z): 7.000 inches
  • End Disc Bore (Z) : 177.80 mm
  • End Disc Width (K): 1.44 inches
  • End Disc Width (K) : 36.58 mm
  • Mounting Bolt Circle (G): 10.00 inches
  • Mounting Bolt Circle (G) : 254.0 mm
  • Threaded Mounting Holes (M): 3/4-10
  • Number of Mounting Holes: 6
  • Hub (Optional) Part Number: S6044XX
  • Maximum Hub Bore: 6.375 inches
  • Maximum Hub Bore : 160 mm
  • Hub Diameter (A): 11.60 inches
  • Hub Diameter (A) : 294.6 mm
  • Hub Width (B): 4.500 inches
  • Hub Width (B) : 114.3 mm
  • Hub Weight (ea.): 90.4 lbs
  • Hub Weight (ea.) : 41.00 kg
  • Hub Fastener Size: (6) 3/4-10x2.25
