Schmidt 5-D Couplings

Part Number: L582S

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Maximum Torque Capacity: 29,300 in-lbs
  • Maximum Torque Capacity : 3,310 Nm
  • Max Shaft Parallel Displacement: 0.375 inches
  • Max Shaft Parallel Displacement : 9.5 mm
  • Max Shaft Angular Displacement: ±5°
  • Coupling Weight: 52 lbs
  • Coupling Weight : 23.59 kg
  • Inertia (WK²): 331 lb-in²
  • Inertia (WK²) : 968.5 kg-cm²

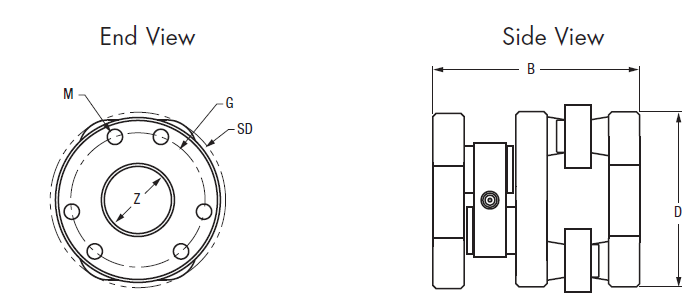

  • End Disc Diameter (D): 8.38 inches
  • End Disc Diameter (D) : 213 mm
  • Swing Diameter (SD): 8.21 inches
  • Swing Diameter (SD) : 208.5 mm
  • Coupling Length (B): 7.23 inches
  • Coupling Length (B) : 184 mm
  • End Disc Bore (Z): 3.50 inches
  • End Disc Bore (Z) : 88.9 mm
  • Mounting Bolt Circle (G): 4.625 inches
  • Mounting Bolt Circle (G) : 117.5 mm
  • Bolt Size M: 5/8"-11
  • Number of Bolts: 5
  • Hub (Optional) Part Number: S6039XX
  • Maximum Hub Bore: 3.75 inches
  • Maximum Hub Bore : 95 mm
  • Hub Diameter (A): 8.00 inches
  • Hub Diameter (A) : 203 mm
  • Hub Width (B): 2.875 inches
  • Hub Width (B) : 73.0 mm
  • Hub Weight (ea.): 26.1 lbs
  • Hub Weight (ea.) : 11.8 kg
  • Hub Fastener Size: (5) 5/8-11 x 2"
