Regular End-of-Shaft Mount Torq-Tenders
Part Number: TT3-J
Click image to enlarge
Specifications
Click for English
Click for Metric
- Torque Range: 18 - 500 in-lbs (must specify)
- Torque Range : 2.0 - 56.5 Nm (must specify)
- Minimum Bore: 0.500 inches
- Minimum Bore : 14 mm
- Max Bore (C): 1.125 inches
- Max Bore (C) : 28 mm
- Housing Diameter (A): 3.000 inches
- Housing Diameter (A) : 76.2 mm
- Overall Length (K): 3.294 inches
- Overall Length (K) : 83.7 mm
- Dimension (G): 2.250 inches
- Dimension (G) : 57.15 mm
- Dimension (J): 3.060 inches
- Dimension (J) : 77.7 mm
- Dimension (L): 1.188 inches
- Dimension (L) : 30.2 mm
- Dimension (N): 1.030 inches
- Dimension (N) : 26.2 mm
- Dimension (O): 0.500 inches
- Dimension (O) : 12.7 mm
- Weight: 3.25 lbs
- Weight : 1.47 kg
Product Note
- For Bore Diameters at or above 15/16” (or 23mm), keyway will be positioned 180° from location shown in drawing above

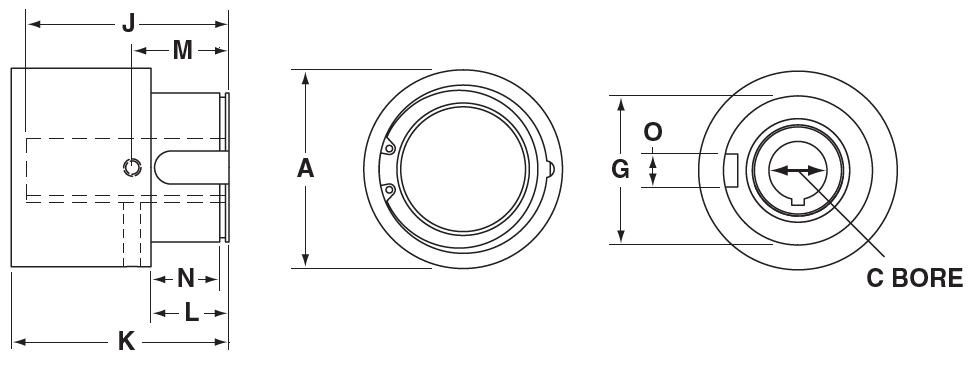

| Regular End-of-Shaft Mount Torq-Tenders - Type J tt3-j Configuration | |
| C Bore | |
