D-50-C Posi-Lok Keyless Shaft Bushings

Part Number: PSL-D-50-C

Quantity:

Click image to enlarge
Specifications
  • Transmittable T: 1,298 ft-lbs
  • Transmittable FA: 15,804 lbf
  • Shaft Bore Diameter (d): 50 mm
  • Shaft Tolerance Grade: H9
  • Shaft Contact Pressure: 26,107 PSI
  • Outside Diameter (D): 80 mm
  • Hub Bore Tolerance Grade: H9
  • Hub Contact Pressure: 15,954 PSI
  • Body Length (L): 36 mm
  • Overall Length (L1): 44 mm
  • Bolt Circle (P): 65 mm
  • Weight: 1.57 lb
  • Polar Moment of Inertia: 17.608 x10⁻³ lb-ft²
  • Actuation Screws (M1): M8 x 35
  • Screws No.: 6
  • Tightening Torque: 301 in-lb
  • Detachment Screw Hole (M2): 2-M8

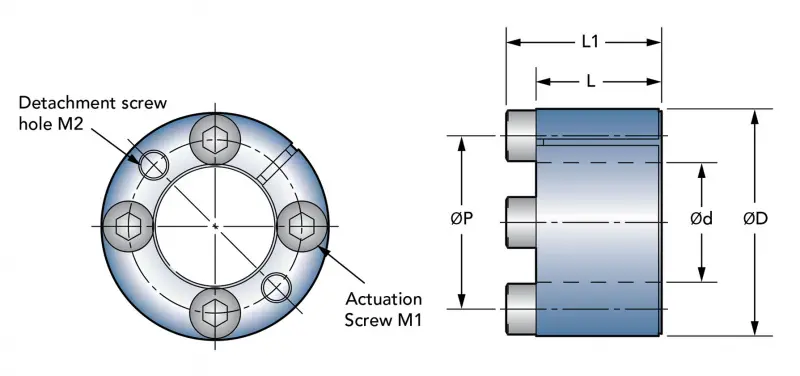

Zero-Max-Posi-Lok-PSL-D-C_illustrations

Product Note

  • PSL-D-50-C bushings are not included in standard production runs. If not in stock, they are built to order. Contact factory for details.
