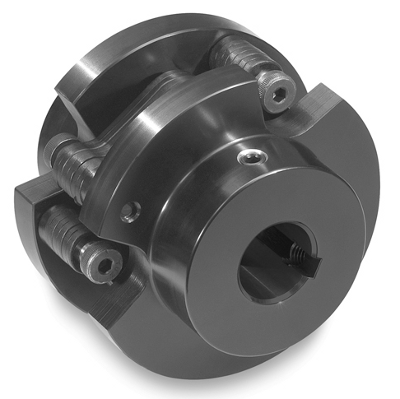

Bolted Style Control Flex Set Screw Couplings
Part Number: C045P
Click image to enlarge
Click image to enlarge
Technical Resources
| Bolted Style Control Flex Couplings c045p Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
C045P Specifications
Click for English
Click for Metric
| Part Number | C045P |
| Max Continuous Torque: | 850 in-lbs |
| Max Continuous Torque : | 96.0 Nm |
| Max Peak Torque: | 1,218 in-lbs |
| Max Peak Torque : | 138 Nm |
| Minimum Bore: | 0.375 inches |
| Minimum Bore : | 10 mm |
| Maximum Bore: | 1.500 inches |
| Maximum Bore : | 40 mm |
| Maximum Speed: | 4,200 RPM |
| Max Parallel Misalignment: | 0.083 inches |
| Max Parallel Misalignment : | 2.1 mm |
| Max Angular Misalignment: | 1.5° |
| Maximum Axial Misalignment: | 0.063 inches |
| Maximum Axial Misalignment : | 1.6 mm |
| Torsional Stiffness: | 261 In-lbs/degree |
| Torsional Stiffness : | 1,690 Nm/rad |
| Net Weight: | 2.72 lbs |
| Net Weight : | 1.23 kg |
| Inertia (WK²): | 5.78 lb-in² |
| Inertia (WK²) : | 16.9 kg-cm² |
| Outside Diameter (D2): | 4.50 inches |
| Outside Diameter (D2) : | 114 mm |
| Overall Length (L): | 4.13 inches |
| Overall Length (L) : | 105 mm |
| Hub Length (L1): | 1.50 inches |
| Hub Length (L1) : | 38.1 mm |
| Distance Between Shaft Ends (L2): | 1.13 Inches |
| Distance Between Shaft Ends (L2) : | 28.6 mm |
| Inside Diameter of Disc (D4): | 1.69 inches |
| Inside Diameter of Disc (D4) : | 42.8 mm |
