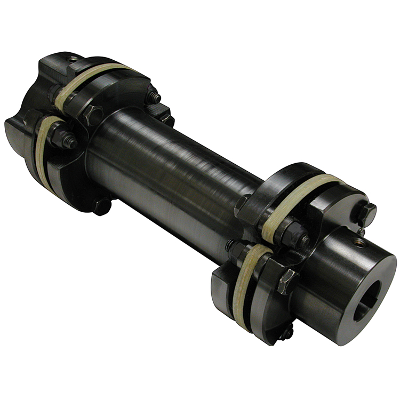

Floating Shaft Set Screw Composite Disc Couplings
Part Number: 6F26
Click image to enlarge
Click image to enlarge
Technical Resources
| Single Clamp Type Steel Hubs 6f26 Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
| RPM (200 to 3,600) | |
| Shaft Span (DBSE) (inches) (2.4 to 120.0) | |
6F26 Specifications
Click for English
Click for Metric
| Part Number | 6F26 |
| Continuous Rated Torque: | 475 in-lbs |
| Continuous Rated Torque : | 53 Nm |
| Peak Rated Torque: | 950 in-lbs |
| Peak Rated Torque : | 106 Nm |
| Maximum Bore (Ea) A Hub: | 0.750 inches |
| Maximum Bore (Ea) A Hub : | 19 mm |
| Maximum Bore (Eb) B Hub: | 1.250 inches |
| Maximum Bore (Eb) B Hub : | 32 mm |
| Maximum Speed: | See Catalog (page 17) |
| Torsional Stiffness: | See Catalog (page 15) |
| Parallel Misalignment: | 0.022 inches/inch of DBSE |
| Parallel Misalignment : | 22 mm/Meter of DBSE |
| Angular Misalignment: | See Catalog (page 17) |
| Axial Misalignment: | 0.080 inches |
| Axial Misalignment : | 2.0 mm |
| Weight: | See Catalog (page 15) |
| Inertia: | See Catalog (page 15) |
| Outside Diameter (A): | 2.59 inches |
| Outside Diameter (A) : | 65.8 mm |
| Hub Length (B): | 1.06 inches |
| Hub Length (B) : | 26.9 mm |
| Minimum DBSE (C): | 2.38 inches |
| Minimum DBSE (C) : | 60.5 mm |
| Maximum DBSE (C): | See Catalog (page 17) |
| Inside Diameter of Disc-Pack (H): | 1.00 inches |
| Inside Diameter of Disc-Pack (H) : | 25.4 mm |
| A Hub Body Diameter (Ga): | 1.50 inches |
| A Hub Body Diameter (Ga) : | 38.1 mm |
| B Hub Body Diameter (Gb): | 2.16 inches |
| B Hub Body Diameter (Gb) : | 54.9 mm |
