Product Note

  • ETP-T1-1/2 is available but not included in standard production runs. If not in stock, it is built to order. Contact factory for details.

Adobe 3D PDF help

ETP-T1-1/2 Techno Keyless Shaft Bushings

Part Number: ETP-T1-1/2

Specifications
  • Transmittable T: 649 ft-lbs
  • Transmittable FA: 8,093 lbf
  • Transmittable FR: 1,124 lbf

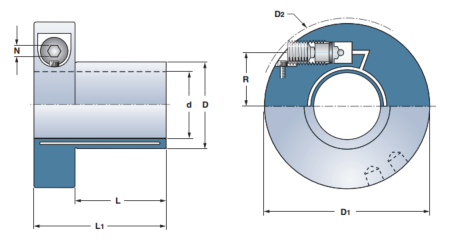

  • Shaft Bore Diameter (d): 38.10 mm (1.500")
  • Shaft Tolerance Grade: h8
  • Sleeve Diameter (D): 50 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 50 mm
  • Overall Length (L1): 70 mm
  • Flange Diameter (D1): 90 mm
  • Dimension (D2): 93 mm
  • Weight: 2.38 lb
  • Polar Moment of Inertia: 26.10 x10⁻³ lb-ft²
  • Actuation Screws: M16
  • Tightening Torque: 18 ft-lbs
  • Actuation Screw to Center (R): 32.5 mm
