ETP-P30 Power Keyless Shaft Bushings

Part Number: ETP-P30

Specifications
  • Transmittable T: 391 ft-lbs
  • Transmittable FA: 5,845 lbf
  • Transmittable FR: 1,798 lbf

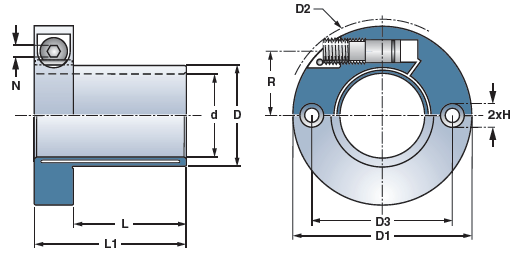

  • Shaft Bore Diameter (d): 30 mm
  • Shaft Tolerance Grade: h8
  • Sleeve Diameter (D): 39 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 36 mm
  • Overall Length (L1): 50 mm
  • Flange Diameter (D1): 72 mm
  • Dimension (D2): 80 mm
  • Dimension (D3): 55.5 mm
  • Mounting Hole Screw Size (H): M6
  • Weight: 0.99 lb
  • Polar Moment of Inertia: 6.88 x10⁻³ lb-ft²
  • Actuation Screws: M10
  • Tightening Torque: 5.9 ft-lbs
  • Actuation Screw to Center (R): 26.0 mm
