ETP-HY130 Hyloc Keyless Shaft Bushings

Part Number: ETP-HY130

Specifications
  • Transmittable T: 39,678 ft-lbs
  • Transmittable FA: 185,460 lbf

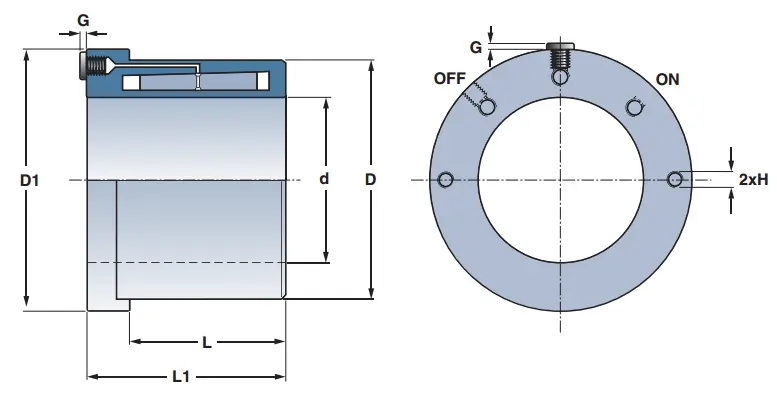

  • Shaft Bore Diameter (d): 130 mm
  • Shaft Tolerance Grade: H7
  • Sleeve Diameter (D): 182 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 134 mm
  • Overall Length (L1): 160 mm
  • Flange Diameter (D1): 200 mm
  • Dimension (G): 7 mm
  • Hole Thread Size (H): M16 (x2)
  • Weight: 37.47 lb
  • Polar Moment of Inertia: 2.61034 lb-ft²
  • Minimum Hub Diameter: See Catalog
