ETP-ER1-15/16 Express Stainless Steel Keyless Shaft Bushings

Part Number: ETP-ER1-15/16

Specifications
  • Transmittable T: 1,401 ft-lbs
  • Transmittable FA: 14,162 lbf
  • Transmittable FR: 1,012 lbf

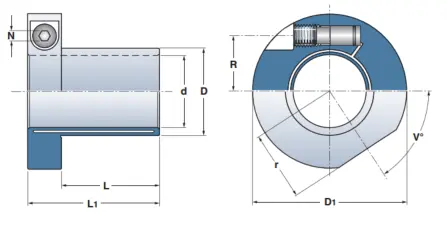

  • Shaft Bore Diameter (d): 49.21 mm (1.938")
  • Shaft Tolerance Grade: h8
  • Sleeve Diameter (D): 60 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 60 mm
  • Overall Length (L1): 80 mm
  • Flange Diameter (D1): 98.5 mm
  • Dimension (D2): 105.1 mm
  • Weight: 2.76 lb
  • Polar Moment of Inertia: 36.78 x10⁻³ lb-ft²
  • Actuation Screws: M16
  • Tightening Torque: 15.49 ft-lbs
  • Actuation Screw to Center (R): 37.5 mm
  • Flat to Center (r): 43.7 mm
  • Angle (V): 60 °
