Double Disc Control Flex Couplings

Part Number: C223P

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Max Continuous Torque: 192 in-lbs
  • Max Continuous Torque : 21.7 Nm
  • Max Peak Torque: 274 in-lbs
  • Max Peak Torque : 31.0 Nm
  • Minimum Bore: 0.375 inches
  • Minimum Bore : 8 mm
  • Maximum Bore: 1.188 inches
  • Maximum Bore : 30 mm
  • Maximum Speed: 5,000 RPM
  • Max Parallel Misalignment: 0.027 inches
  • Max Parallel Misalignment : 0.7 mm
  • Max Angular Misalignment: 1.0°
  • Maximum Axial Misalignment: 0.020 inches
  • Maximum Axial Misalignment : 0.5 mm
  • Torsional Stiffness: 110 In-lbs/degree
  • Torsional Stiffness : 712 Nm/rad
  • Net Weight: 0.483 lbs
  • Net Weight : 0.219 kg
  • Inertia (WK²): 0.298 lb-in²
  • Inertia (WK²) : 0.872 kg-cm²

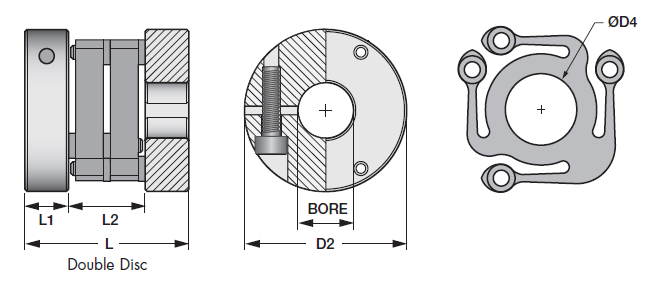

  • Outside Diameter (D2): 2.205 inches
  • Outside Diameter (D2) : 56.0 mm
  • Overall Length (L): 2.20 inches
  • Overall Length (L) : 55.9 mm
  • Hub Length (L1): 0.591 inches
  • Hub Length (L1) : 15.0 mm
  • Distance Between Shaft Ends (L2): 1.02 inches
  • Distance Between Shaft Ends (L2) : 25.9 mm
  • Inside Diameter of Disc (D4): 0.71 inches
  • Inside Diameter of Disc (D4) : 18.0 mm
Double Disc Control Flex Couplings

Adobe 3D PDF help
Configuration
Bore Size D1
Bore Size D2
