Configuration
Bore Size D1
Bore Size D2

Double Disc Control Flex Couplings

Part Number: C208P

Specifications
  • Torsional Stiffness: 260
  • Max. Peak Torque: 10
  • Max. Cont. Peak Torque: 7
  • Maximum Speed: 10,000
  • Torsional Stiffness (in-oz/minute): 1.22
  • Maximum Shaft Misalignments Parallel: 0.009
  • Maximum Shaft Misalignments Angular: 1.000
  • Maximum Shaft Misalignments Axial: 0.007
  • Net weight: 0.021

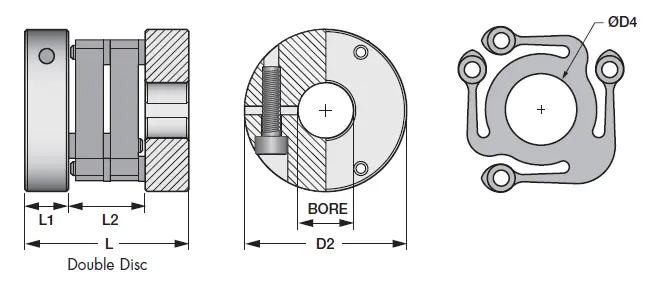

  • CPL Diameter D2: 0.748
  • Coupling Length L: 0.780
  • Hub Length L1: 0.219
  • Inertia (Wk2): 0.001
  • Max Bore: 0.375
  • Disc Inside Diameter D4: 0.280
  • Disc Length L2: 0.340
