Single Flex Clamp Hub x Adaptor Mount Power Series Composite Disc Couplings
Part Number: 12A140-C-AM
Click image to enlarge
Click image to enlarge
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub
Technical Resources

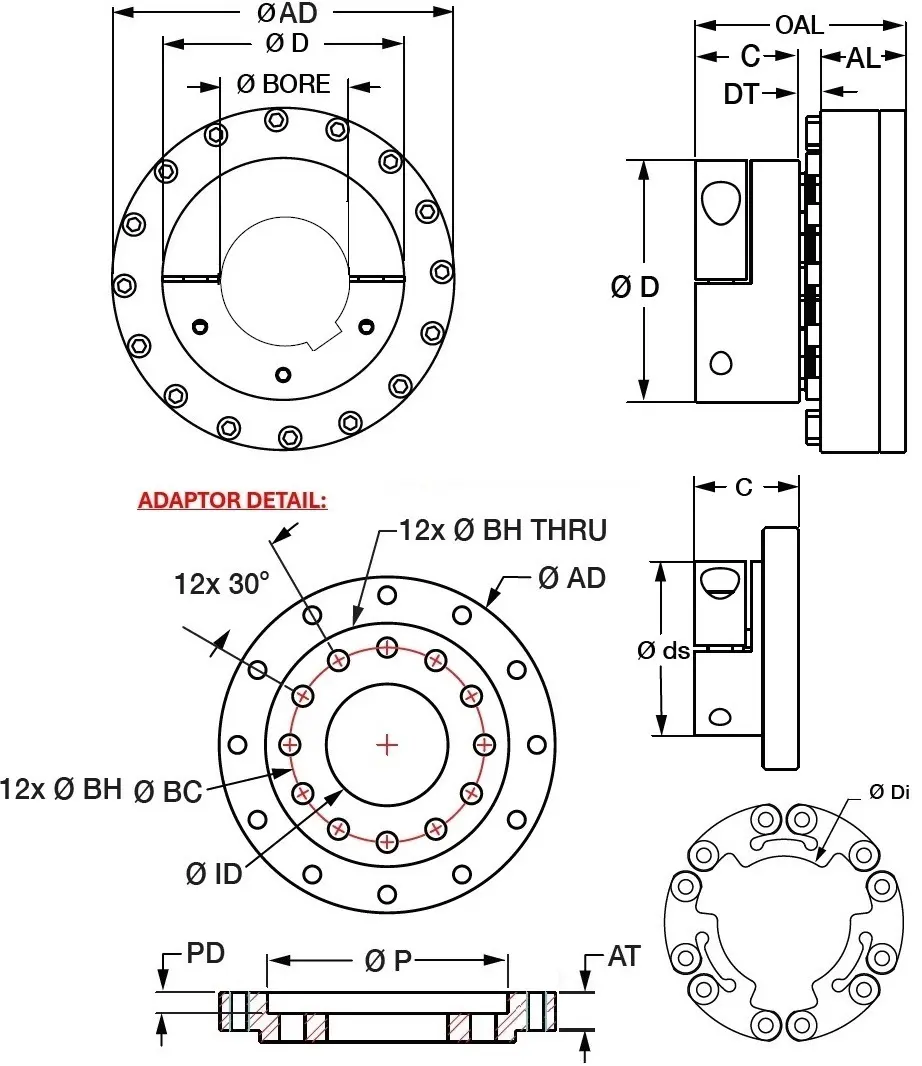

| Clamp x GB Adaptor 12A140-C-AM Configuration | |
| Clamp Option 1 | |
| Bore Size D1 | |
| d1 Keyway Option | |
12A140-C-AM Specifications
Click for English
Click for Metric
| Part Number | 12A140-C-AM |
| Continuous Rated Torque: | 16,000 in-lbs |
| Continuous Rated Torque : | 1,808 Nm |
| Peak Rated Torque: | 32,000 in-lbs |
| Peak Rated Torque : | 3,616 Nm |
| Max Bore (C1, Integral Clamp), Keyway: | 1.563 inch |
| Max Bore (C1, Integral Clamp), Keyway : | 40mm |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart): | 1.563 inch |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart) : | 40mm |
| Max Bore (C2, Split Clamp), Keyway: | 2.938 inch |
| Max Bore (C2, Split Clamp), Keyway : | 75mm |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart): | 3.250 inch |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart) : | 82mm |
| Maximum Speed: | 5,784 RPM |
| Torsional Stiffness: | 87,189 In-lbs/degree |
| Torsional Stiffness : | 564,470 Nm/rad |
| Angular Misalignment: | 0.5° |
| Axial Misalignment: | 0.029 inch |
| Axial Misalignment : | 0.74 mm |
| Parallel Misalignment: | 0.003 inch |
| Parallel Misalignment : | 0.08 mm |
| Hub OD (D): | 5.51 inch |
| Hub OD (D) : | 140 mm |
| Reduced Hub OD (Integral Clamp), ds: | 3.96 inch |
| Reduced Hub OD (Integral Clamp), ds : | 101 mm |
| Hub Length (C): | 2.375 inch |
| Hub Length (C) : | 60.3 mm |
| Overall Length (OAL): | 4.80 inch |
| Overall Length (OAL) : | 122 mm |
| Disc Pack ID (Di): | 2.78 inch |
| Disc Pack ID (Di) : | 70.6 mm |
| Disc Pack Thickness (DT): | 0.486 inch |
| Disc Pack Thickness (DT) : | 12.3 mm |
| Adaptor Model: | AM125 |
| Adaptor Diameter (AD): | 7.80 inch |
| Adaptor Diameter (AD) : | 198 mm |
| Adaptor Length (AL): | 1.94 inch |
| Adaptor Length (AL) : | 49.3 mm |
| Pilot Diameter (ØP): | 6.2992 / 6.3008 inch |
| Pilot Diameter (ØP) : | 160.000 / 160.040 mm |
| Pilot Depth (PD): | 0.28 inch |
| Pilot Depth (PD) : | 7.0 mm |
| Adaptor Plate Thickness (AT): | 0.60 inch |
| Adaptor Plate Thickness (AT) : | 15.2 mm |
| Bolt Hole Diameter (ØBH): | 0.42 inch |
| Bolt Hole Diameter (ØBH) : | 10.7 mm |
| Bolt Circle (ØBC): | 4.92 inch |
| Bolt Circle (ØBC) : | 125 mm |
| Adaptor Plate ID (ID): | 3.15 inch |
| Adaptor Plate ID (ID) : | 80.0 mm |
| Weight: | See Catalog |
| Weight : | See Catalog |
| Inertia: | See Catalog |
| Inertia : | See Catalog |
