Single Flex Clamp Hub x Adaptor Mount Power Series Composite Disc Couplings
Part Number: 12A105-C-AM
Click image to enlarge
Click image to enlarge
Configuration Note:
- Hub Style "C1" = Single-Bolt Integral Clamp Hub
- Hub Style "C2" = Two-Bolt Split Clamp Hub
Technical Resources

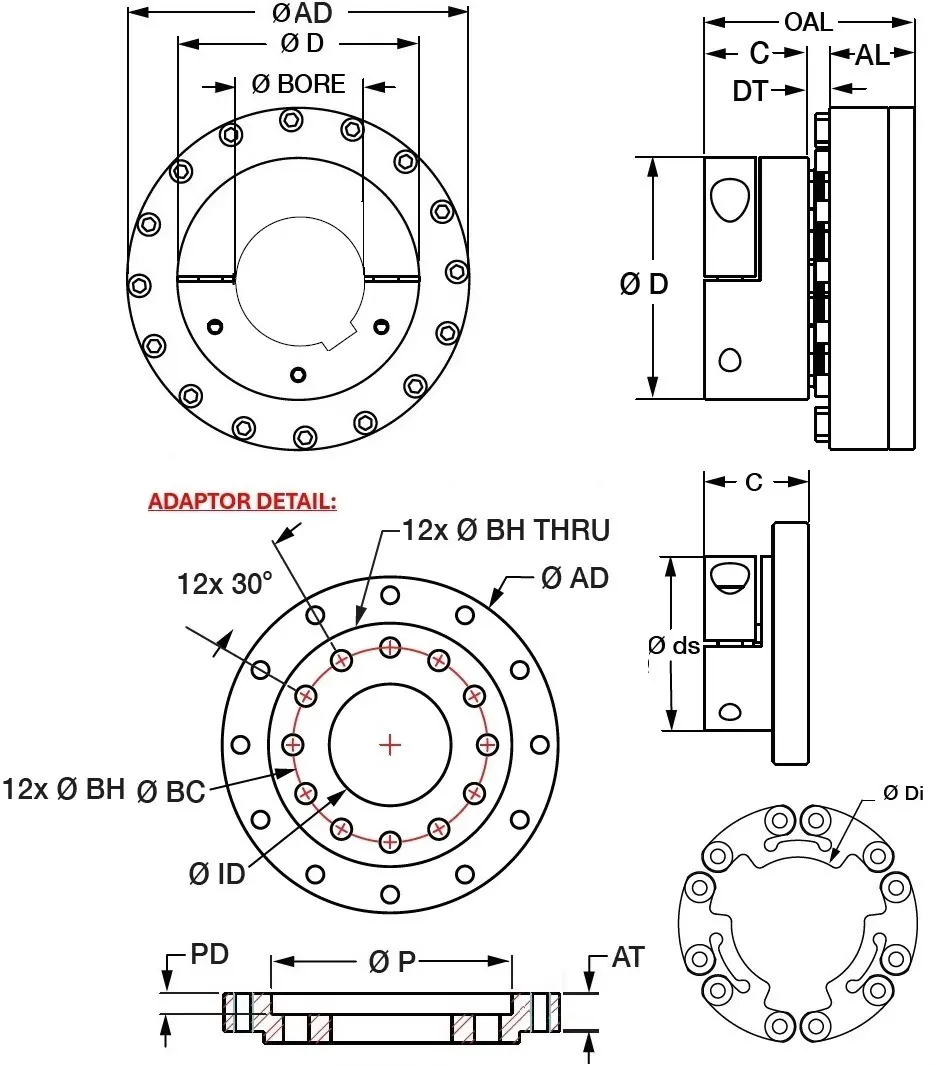

| Clamp x GB Adaptor 12A105-C-AM Configuration | |
| Clamp Option 1 | |
| Bore Size D1 | |
| d1 Keyway Option | |
12A105-C-AM Specifications
Click for English
Click for Metric
| Part Number | 12A105-C-AM |
| Continuous Rated Torque: | 5,800 in-lbs |
| Continuous Rated Torque : | 655 Nm |
| Peak Rated Torque: | 11,600 in-lbs |
| Peak Rated Torque : | 1,311 Nm |
| Max Bore (C1, Integral Clamp), Keyway: | 1.250 inch |
| Max Bore (C1, Integral Clamp), Keyway : | 32mm |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart): | 1.250 inch |
| Max Bore (C1, Integral Clamp), no-Key (See Transmittable Torque Chart) : | 32mm |
| Max Bore (C2, Split Clamp), Keyway: | 2.125 inch |
| Max Bore (C2, Split Clamp), Keyway : | 55mm |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart): | 2.375 inch |
| Max Bore (C2, Split Clamp), no-Key (See Transmittable Torque Chart) : | 60mm |
| Maximum Speed: | 8,308 RPM |
| Torsional Stiffness: | 32,921 In-lbs/degree |
| Torsional Stiffness : | 213,134 Nm/rad |
| Angular Misalignment: | 0.5° |
| Axial Misalignment: | 0.022 inch |
| Axial Misalignment : | 0.56 mm |
| Parallel Misalignment: | 0.002 inch |
| Parallel Misalignment : | 0.06 mm |
| Hub OD (D): | 4.13 inch |
| Hub OD (D) : | 105 mm |
| Reduced Hub OD (Integral Clamp), ds: | 2.89 inch |
| Reduced Hub OD (Integral Clamp), ds : | 73.4 mm |
| Hub Length (C): | 1.875 inch |
| Hub Length (C) : | 47.6 mm |
| Overall Length (OAL): | 3.64 inch |
| Overall Length (OAL) : | 92.0 mm |
| Disc Pack ID (Di): | 2.05 inch |
| Disc Pack ID (Di) : | 52.1 mm |
| Disc Pack Thickness (DT): | 0.426 inch |
| Disc Pack Thickness (DT) : | 10.8 mm |
| Adaptor Model: | AM80 |
| Adaptor Diameter (AD): | 5.43 inch |
| Adaptor Diameter (AD) : | 138 mm |
| Adaptor Length (AL): | 1.34 inch |
| Adaptor Length (AL) : | 34.0 mm |
| Pilot Diameter (ØP): | 3.9370 / 3.9384 inch |
| Pilot Diameter (ØP) : | 100.000 / 100.035 mm |
| Pilot Depth (PD): | 0.22 inch |
| Pilot Depth (PD) : | 5.5 mm |
| Adaptor Plate Thickness (AT): | 0.47 inch |
| Adaptor Plate Thickness (AT) : | 12.0 mm |
| Bolt Hole Diameter (ØBH): | 0.33 inch |
| Bolt Hole Diameter (ØBH) : | 8.4 mm |
| Bolt Circle (ØBC): | 3.15 inch |
| Bolt Circle (ØBC) : | 80.0 mm |
| Adaptor Plate ID (ID): | 1.97 inch |
| Adaptor Plate ID (ID) : | 50.0 mm |
| Weight: | See Catalog |
| Weight : | See Catalog |
| Inertia: | See Catalog |
| Inertia : | See Catalog |
