Double Flex Flange Hubs Power Series Composite Disc Couplings
Part Number: 12P95-FM-FM
Click image to enlarge
Click image to enlarge
Technical Resources
12P95-FM-FM Specifications
Click for English
Click for Metric
| Part Number | 12P95-FM-FM |
| Continuous Rated Torque: | 4,000 in-lbs |
| Continuous Rated Torque : | 452 Nm |
| Peak Rated Torque: | 8,000 in-lbs |
| Peak Rated Torque : | 904 Nm |
| Maximum Speed: | 12,063 RPM |
| Torsional Stiffness: | 12,058 In-lbs/degree |
| Torsional Stiffness : | 78,065 Nm/rad |
| Angular Misalignment: | 0.5° |
| Axial Misalignment: | 0.038 inch |
| Axial Misalignment : | 0.97 mm |
| Parallel Misalignment: | 0.010 inch |
| Parallel Misalignment : | 0.25 mm |

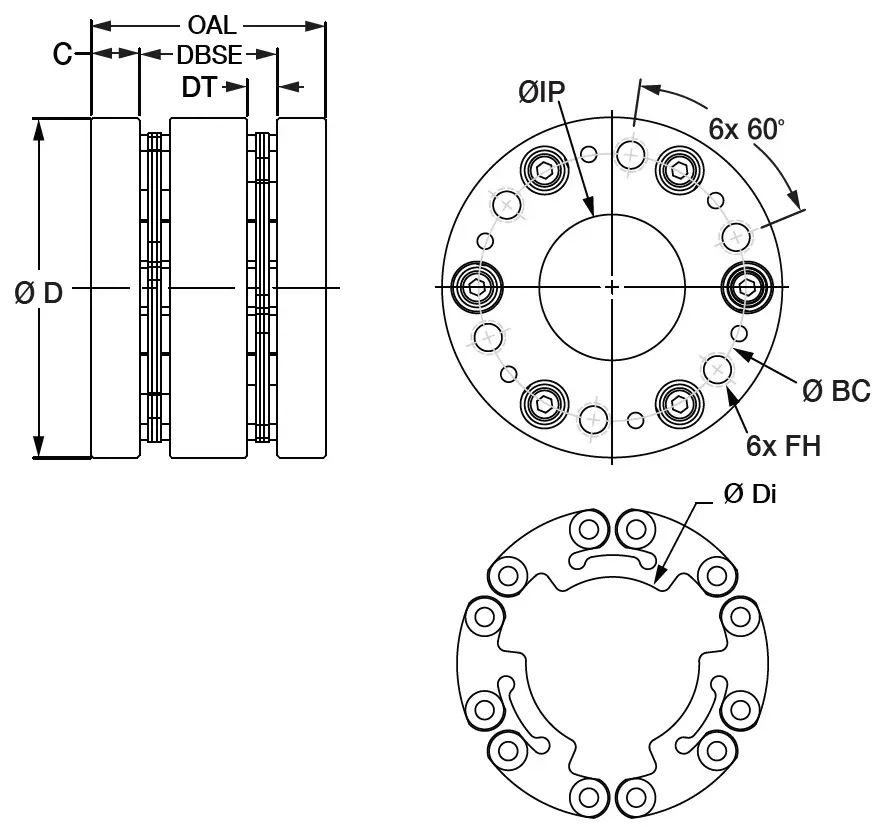

| Flange Plate OD (ØD): | 3.7402 / 3.7388 inches |
| Flange Plate OD (ØD) : | 95.000 / 94.965 mm |
| Flange Length (C): | 0.472 inch |
| Flange Length (C) : | 12 mm |
| Distance Between Shaft Ends (DBSE): | 1.81 inch |
| Distance Between Shaft Ends (DBSE) : | 46.0 mm |
| Overall Length (OAL): | 2.75 inch |
| Overall Length (OAL) : | 70.0 mm |
| Bolt Circle Diameter (ØBC): | 2.953 inch |
| Bolt Circle Diameter (ØBC) : | 75 inch |
| # of Mtg Holes x Angle: | 6 x 60 deg |
| Flange Bolt Hole Size: | M10-1.5 |
| Flange Pilot (ØIP): | 1.7717 / 1.7727 inches |
| Flange Pilot (ØIP) : | 45.000 / 45.025 mm |
| Disc Pack ID (Di): | 1.88 inch |
| Disc Pack ID (Di) : | 47.8 mm |
| Disc Pack Thickness (DT): | 0.326 inch |
| Disc Pack Thickness (DT) : | 8.3 mm |
| Weight: | 3.85 lbs |
| Weight : | 1.75 kg |
| Inertia: | 8.33 lb-in² |
| Inertia : | 24.38 kg-cm² |
