Double Flex Power Clamp x Clamp
Part Number: 12P105-C-C
Warning : array_merge(): Argument #2 is not an array in
/data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line
35
Click image to enlarge
Specifications
Click for English
Click for Metric

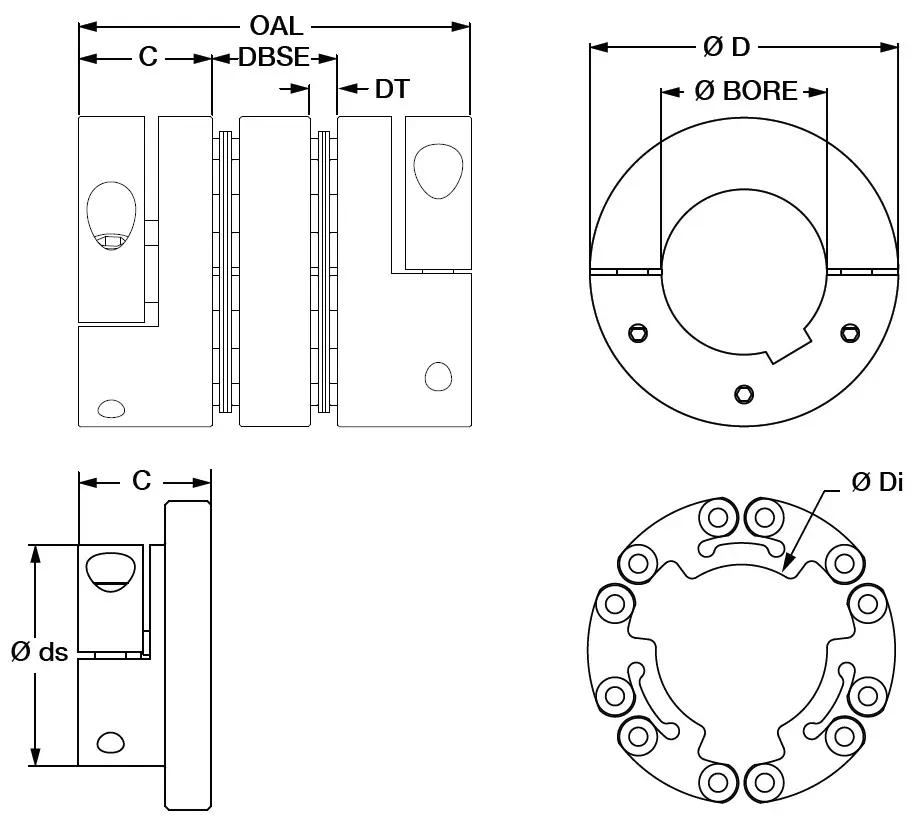

Continuous Rated Torque: 5,800 in-lbsContinuous Rated Torque : 655 NmPeak Rated Torque: 11,600 in-lbsPeak Rated Torque : 1,311 NmMax Bore (C1, Integral Clamp), Keyway: 1.250 inchMax Bore (C1, Integral Clamp), Keyway : 32mmMax Bore (C1, Integral Clamp), no-Key 1.250 inchMax Bore (C1, Integral Clamp), no-Key 32mmMax Bore (C2, Split Clamp), Keyway: 2.125 inchMax Bore (C2, Split Clamp), Keyway : 55mmMax Bore (C2, Split Clamp), no-Key 2.375 inchMax Bore (C2, Split Clamp), no-Key 60mmMaximum Speed: 10,924 RPMTorsional Stiffness: 16,461 In-lbs/degreeTorsional Stiffness : 106,570 Nm/radAngular Misalignment: 0.5°Axial Misalignment: 0.044 inchAxial Misalignment : 1.12 mmParallel Misalignment: 0.012 inchParallel Misalignment : 0.30 mmHub OD (D): 4.13 inchHub OD (D) : 105 mmReduced Hub OD (Integral Clamp), ds: 2.89 inchReduced Hub OD (Integral Clamp), ds : 73.4 mmHub Length (C): 1.875 inchHub Length (C) : 47.6 mmDistance Between Shaft Ends (DBSE): 1.84 inchDistance Between Shaft Ends (DBSE) : 46.6 mmOverall Length (OAL): 5.59 inchOverall Length (OAL) : 142 mmDisc Pack ID (Di): 2.05 inchDisc Pack ID (Di) : 52.1 mmDisc Pack Thickness (DT): 0.426 inchDisc Pack Thickness (DT) : 10.8 mmWeight: See CatalogWeight : See CatalogInertia: See CatalogInertia : See Catalog
Hub Style "C1" = Single-Bolt Integral Clamp Hub Hub Style "C2" = Two-Bolt Split Clamp Hub
Clamp x Clamp 12P105-C-C Configuration
Clamp Option 1
C1
C2
Bore Size D1
0.7500"
0.8125"
0.8750"
0.9375"
1.0000"
1.0625"
1.1250"
1.1875"
1.2500"
1.3125"
1.3750"
1.4375"
1.5000"
1.5625"
1.6250"
1.6875"
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.0625"
2.1250"
2.1875",2.2500"
2.3125"
2.3750"
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
23 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
37 mm
38 mm
39 mm
40 mm
41 mm
42 mm
43 mm
44 mm
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
d1 Keyway Option
YES
NO
Clamp Option 2
C1
C2
Bore Size D2
0.7500"
0.8125"
0.8750"
0.9375"
1.0000"
1.0625"
1.1250"
1.1875"
1.2500"
1.3125"
1.3750"
1.4375"
1.5000"
1.5625"
1.6250"
1.6875"
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.0625"
2.1250"
2.1875",2.2500"
2.3125"
2.3750"
15 mm
16 mm
17 mm
18 mm
19 mm
20 mm
21 mm
22 mm
23 mm
24 mm
25 mm
26 mm
27 mm
28 mm
29 mm
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
37 mm
38 mm
39 mm
40 mm
41 mm
42 mm
43 mm
44 mm
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
d2 Keyway Option
YES
NO
Double Flex Power Clamp x Clamp
Part Number: 12P105-C-C
Double Flex Power Clamp x Clamp 12P105-C-C Specifications
Click for English
Click for Metric
Part Number 12P105-C-C Continuous Rated Torque: 5,800 in-lbs
Continuous Rated Torque : 655 Nm
Peak Rated Torque: 11,600 in-lbs
Peak Rated Torque : 1,311 Nm
Max Bore (C1, Integral Clamp), Keyway: 1.250 inch
Max Bore (C1, Integral Clamp), Keyway : 32mm
Max Bore (C1, Integral Clamp), no-Key 1.250 inch
Max Bore (C1, Integral Clamp), no-Key 32mm
Max Bore (C2, Split Clamp), Keyway: 2.125 inch
Max Bore (C2, Split Clamp), Keyway : 55mm
Max Bore (C2, Split Clamp), no-Key 2.375 inch
Max Bore (C2, Split Clamp), no-Key 60mm
Maximum Speed: 10,924 RPM
Torsional Stiffness: 16,461 In-lbs/degree
Torsional Stiffness : 106,570 Nm/rad
Angular Misalignment: 0.5°
Axial Misalignment: 0.044 inch
Axial Misalignment : 1.12 mm
Parallel Misalignment: 0.012 inch
Parallel Misalignment : 0.30 mm
Hub OD (D): 4.13 inch
Hub OD (D) : 105 mm
Reduced Hub OD (Integral Clamp), ds: 2.89 inch
Reduced Hub OD (Integral Clamp), ds : 73.4 mm
Hub Length (C): 1.875 inch
Hub Length (C) : 47.6 mm
Distance Between Shaft Ends (DBSE): 1.84 inch
Distance Between Shaft Ends (DBSE) : 46.6 mm
Overall Length (OAL): 5.59 inch
Overall Length (OAL) : 142 mm
Disc Pack ID (Di): 2.05 inch
Disc Pack ID (Di) : 52.1 mm
Disc Pack Thickness (DT): 0.426 inch
Disc Pack Thickness (DT) : 10.8 mm
Weight: See Catalog
Weight : See Catalog
Inertia: See Catalog
Inertia : See Catalog
