Double Flex Power Clamp x Adaptor
Part Number: 12P190-C-AM
Warning : array_merge(): Argument #2 is not an array in
/data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line
35
Click image to enlarge
Specifications
Click for English
Click for Metric
Continuous Rated Torque: 43,500 in-lbsContinuous Rated Torque : 4,915 NmPeak Rated Torque: 87,000 in-lbsPeak Rated Torque : 9,831 NmMax Bore (C2, Split Clamp), Keyway: 4.000 inchMax Bore (C2, Split Clamp), Keyway : 105mmMax Bore (C2, Split Clamp), no-Key 4.500 inchMax Bore (C2, Split Clamp), no-Key 115mmMaximum Speed: 4,028 RPMTorsional Stiffness: 133,480 In-lbs/degreeTorsional Stiffness : 864,163 Nm/radAngular Misalignment: 0.5°Axial Misalignment: 0.074 inchAxial Misalignment : 1.88 mmParallel Misalignment: 0.022 inchParallel Misalignment : 0.56 mmHub OD (D): 7.48 inchHub OD (D) : 190 mmHub Length (C): 2.750 inchHub Length (C) : 69.9 mmDimension (D1): 3.18 inchDimension (D1) : 80.9 mmOverall Length (OAL): 8.93 inchOverall Length (OAL) : 227 mmDisc Pack ID (Di): 3.89 inchDisc Pack ID (Di) : 98.8 mmDisc Pack Thickness (DT): 0.706 inchDisc Pack Thickness (DT) : 17.9 mmAdaptor Model: AM160Adaptor Diameter (AD): 11.20 inchAdaptor Diameter (AD) : 285 mmAdaptor Length (AL): 3.00 inchAdaptor Length (AL) : 76.2 mmPilot Diameter (ØP): 7.7874 / 7.8758 inchPilot Diameter (ØP) : 200.000 / 200.045 mmPilot Depth (PD): 0.32 inchPilot Depth (PD) : 8.0 mmAdaptor Plate Thickness (AT): 1.07 inchAdaptor Plate Thickness (AT) : 27.2 mmBolt Hole Diameter (ØBH): 0.83 inchBolt Hole Diameter (ØBH) : 21.0 mmBolt Circle (ØBC): 6.30 inchBolt Circle (ØBC) : 160 mmAdaptor Plate ID (ID): 3.54 inchAdaptor Plate ID (ID) : 90.0 mmWeight (max bore): 92.6 lbsWeight (max bore) : 42.0 kgInertia (max bore): 1,392 lb-in²Inertia (max bore) : 4,073 kg-cm²
Hub Style "C1" = Single-Bolt Integral Clamp Hub Hub Style "C2" = Two-Bolt Split Clamp Hub
Inch Model Linear Actuators 12P190-C-AM Configuration
Clamp Option 1
C2
Bore Size D1
1.3750"
1.4375"
1.5000"
1.5625"
1.6250"
1.6875"
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.1875"
2.2500"
2.3125"
2.3750"
2.4375"
2.5000"
2.5625"
2.6250"
2.6875"
2.7500"
2.8125"
2.8750"
2.9375"
3.0000"
3.0625"
3.1250"
3.1875"
3.2500"
3.3125"
3.3750"
3.4375"
3.5000"
3.5625"
3.6250"
3.6875"
3.7500"
3.8125"
3.8750"
3.9375"
4.0000"
4.0625"
4.1250"
4.1875"
4.2500"
4.3125"
4.3750"
4.4375"
4.5000"
35 mm
36 mm
37 mm
38 mm
39 mm
40 mm
41 mm
42 mm
43 mm
44 mm
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
62 mm
63 mm
64 mm
65 mm
66 mm
68 mm
70 mm
72 mm
75 mm
76 mm
78 mm
80 mm
82 mm
85 mm
88 mm
90 mm
92 mm
95 mm
98 mm
100 mm
102 mm
105 mm
108 mm
110 mm
115 mm
d1 Keyway Option
YES
NO
Double Flex Power Clamp x Adaptor
Part Number: 12P190-C-AM
Double Flex Power Clamp x Adaptor 12P190-C-AM Specifications
Click for English
Click for Metric
Part Number 12P190-C-AM Continuous Rated Torque: 43,500 in-lbs
Continuous Rated Torque : 4,915 Nm
Peak Rated Torque: 87,000 in-lbs
Peak Rated Torque : 9,831 Nm
Max Bore (C2, Split Clamp), Keyway: 4.000 inch
Max Bore (C2, Split Clamp), Keyway : 105mm
Max Bore (C2, Split Clamp), no-Key 4.500 inch
Max Bore (C2, Split Clamp), no-Key 115mm
Maximum Speed: 4,028 RPM
Torsional Stiffness: 133,480 In-lbs/degree
Torsional Stiffness : 864,163 Nm/rad
Angular Misalignment: 0.5°
Axial Misalignment: 0.074 inch
Axial Misalignment : 1.88 mm
Parallel Misalignment: 0.022 inch
Parallel Misalignment : 0.56 mm

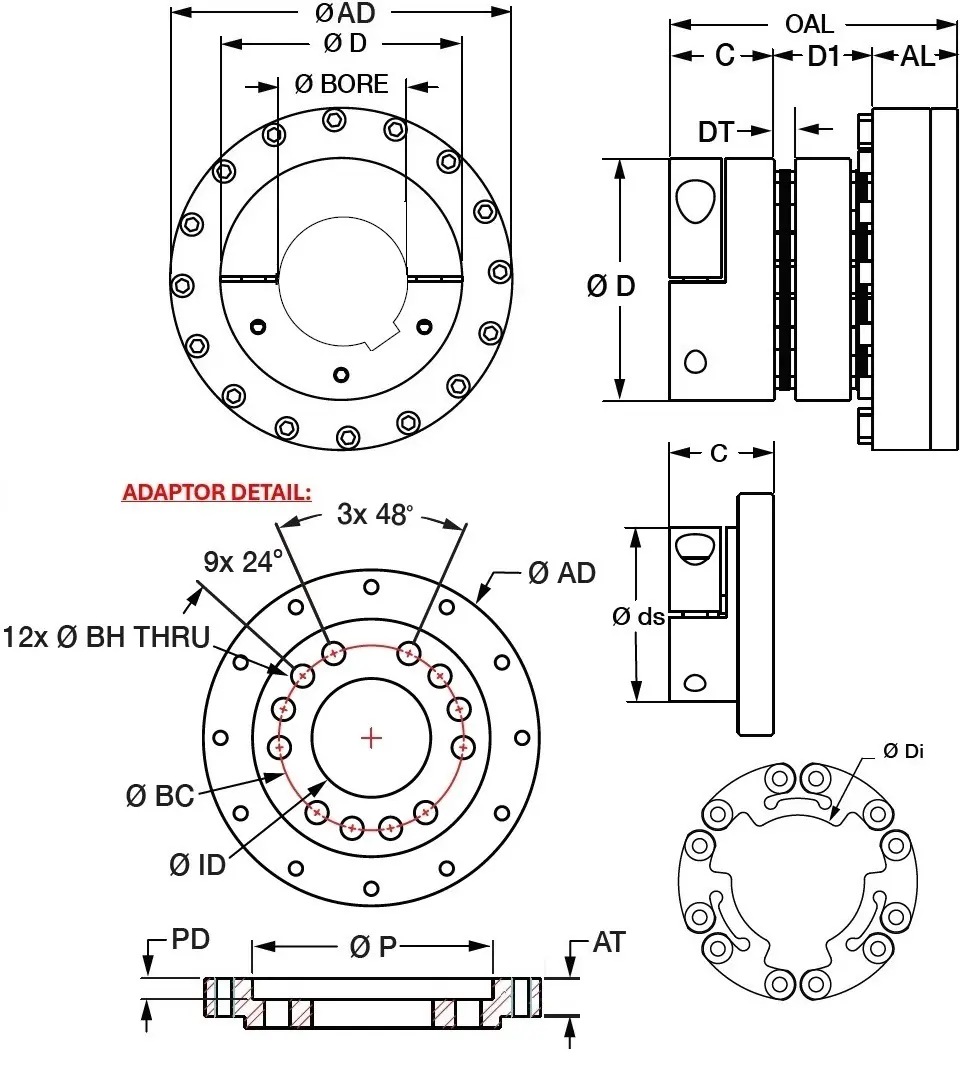

Hub OD (D): 7.48 inch
Hub OD (D) : 190 mm
Hub Length (C): 2.750 inch
Hub Length (C) : 69.9 mm
Dimension (D1): 3.18 inch
Dimension (D1) : 80.9 mm
Overall Length (OAL): 8.93 inch
Overall Length (OAL) : 227 mm
Disc Pack ID (Di): 3.89 inch
Disc Pack ID (Di) : 98.8 mm
Disc Pack Thickness (DT): 0.706 inch
Disc Pack Thickness (DT) : 17.9 mm
Adaptor Model: AM160
Adaptor Diameter (AD): 11.20 inch
Adaptor Diameter (AD) : 285 mm
Adaptor Length (AL): 3.00 inch
Adaptor Length (AL) : 76.2 mm
Pilot Diameter (ØP): 7.7874 / 7.8758 inch
Pilot Diameter (ØP) : 200.000 / 200.045 mm
Pilot Depth (PD): 0.32 inch
Pilot Depth (PD) : 8.0 mm
Adaptor Plate Thickness (AT): 1.07 inch
Adaptor Plate Thickness (AT) : 27.2 mm
Bolt Hole Diameter (ØBH): 0.83 inch
Bolt Hole Diameter (ØBH) : 21.0 mm
Bolt Circle (ØBC): 6.30 inch
Bolt Circle (ØBC) : 160 mm
Adaptor Plate ID (ID): 3.54 inch
Adaptor Plate ID (ID) : 90.0 mm
Weight (max bore): 92.6 lbs
Weight (max bore) : 42.0 kg
Inertia (max bore): 1,392 lb-in²
Inertia (max bore) : 4,073 kg-cm²
