Bolted Style Control Flex Couplings

Part Number: C075P

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Max Continuous Torque: 3,900 in-lbs
  • Max Continuous Torque : 441 Nm
  • Max Peak Torque: 5,638 in-lbs
  • Max Peak Torque : 637 Nm
  • Minimum Bore: 1.000 inches
  • Minimum Bore : 24 mm
  • Maximum Bore: 2.500 inches
  • Maximum Bore : 65 mm
  • Maximum Speed: 2,500 RPM
  • Max Parallel Misalignment: 0.139 inches
  • Max Parallel Misalignment : 3.5 mm
  • Max Angular Misalignment: 1.5°
  • Maximum Axial Misalignment: 0.104 inches
  • Maximum Axial Misalignment : 2.6 mm
  • Torsional Stiffness: 1,529 In-lbs/degree
  • Torsional Stiffness : 9,898 Nm/rad
  • Net Weight: 11.7 lbs
  • Net Weight : 5.31 kg
  • Inertia (WK²): 73.7 lb-in²
  • Inertia (WK²) : 216 kg-cm²
  • Outside Diameter (D2): 7.50 inches
  • Outside Diameter (D2) : 191 mm
  • Overall Length (L): 6.88 inches
  • Overall Length (L) : 175 mm
  • Hub Length (L1): 2.50 inches
  • Hub Length (L1) : 63.5 mm
  • Distance Between Shaft Ends (L2): 1.88 inches
  • Distance Between Shaft Ends (L2) : 47.6 mm
  • Inside Diameter of Disc (D4): 2.81 inches
  • Inside Diameter of Disc (D4) : 71.4 mm

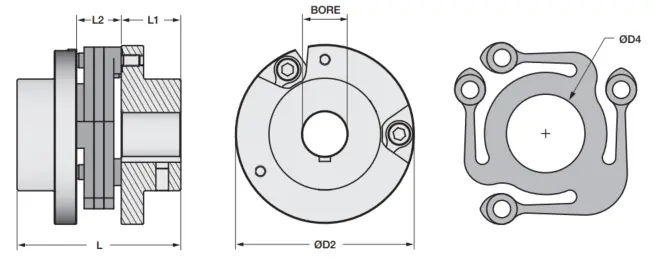

Bolted Style Control Flex Coupling

Adobe 3D PDF help
Configuration
Bore Size D1
Bore Size D2
