Bolted Style Control Flex Couplings

Part Number: C045P

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Max Continuous Torque: 850 in-lbs
  • Max Continuous Torque : 96.0 Nm
  • Max Peak Torque: 1,218 in-lbs
  • Max Peak Torque : 138 Nm
  • Minimum Bore: 0.375 inches
  • Minimum Bore : 10 mm
  • Maximum Bore: 1.500 inches
  • Maximum Bore : 40 mm
  • Maximum Speed: 4,200 RPM
  • Max Parallel Misalignment: 0.083 inches
  • Max Parallel Misalignment : 2.1 mm
  • Max Angular Misalignment: 1.5°
  • Maximum Axial Misalignment: 0.063 inches
  • Maximum Axial Misalignment : 1.6 mm
  • Torsional Stiffness: 261 In-lbs/degree
  • Torsional Stiffness : 1,690 Nm/rad
  • Net Weight: 2.72 lbs
  • Net Weight : 1.23 kg
  • Inertia (WK²): 5.78 lb-in²
  • Inertia (WK²) : 16.9 kg-cm²
  • Outside Diameter (D2): 4.50 inches
  • Outside Diameter (D2) : 114 mm
  • Overall Length (L): 4.13 inches
  • Overall Length (L) : 105 mm
  • Hub Length (L1): 1.50 inches
  • Hub Length (L1) : 38.1 mm
  • Distance Between Shaft Ends (L2): 1.13 Inches
  • Distance Between Shaft Ends (L2) : 28.6 mm
  • Inside Diameter of Disc (D4): 1.69 inches
  • Inside Diameter of Disc (D4) : 42.8 mm

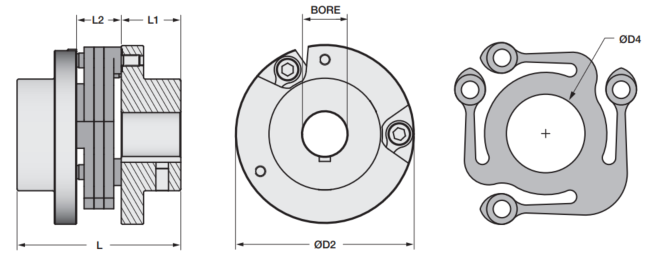

Bolted Style Control Flex Coupling
