Single Clamp Stainless Steel Hubs

Part Number: 6A37C-SS

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Continuous Rated Torque: 1,600 in-lbs
  • Continuous Rated Torque : 181 Nm
  • Peak Rated Torque: 3,200 in-lbs
  • Peak Rated Torque : 362 Nm
  • Maximum Bore (E) with Keyway: 1.500 inches
  • Maximum Bore (E) with Keyway  : 40 mm
  • Maximum Bore (E) without Keyway: 1.875 inches
  • Maximum Bore (E) without Keyway  : 48 mm
  • Maximum Speed: 6,700 RPM
  • Torsional Stiffness: 10,376 In-lbs/degree
  • Torsional Stiffness : 67,167 Nm/rad
  • Parallel Misalignment: 0.013 inches
  • Parallel Misalignment : 0.30 mm
  • Angular Misalignment: 3 °
  • Axial Misalignment: 0.070 inches
  • Axial Misalignment : 1.8 mm
  • Weight at Max Bore: 6.04 lbs
  • Weight at Max Bore : 2.74 kg
  • Inertia at Max Bore: 9.62 lb-in²
  • Inertia at Max Bore : 28.2 kg-cm²

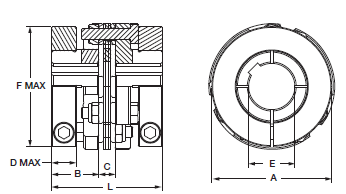

  • Outside Diameter (A): 3.75 inches
  • Outside Diameter (A) : 95.3 mm
  • Overall Length (L): 3.40 inches
  • Overall Length (L) : 86.4 mm
  • Hub Length (B): 1.44 inches
  • Hub Length (B) : 36.6 mm
  • Distance Between Shaft Ends (C): 0.52 inches
  • Distance Between Shaft Ends (C) : 13.2 mm
  • Inside Diameter of Disc-Pack (H): 1.51 inches
  • Inside Diameter of Disc-Pack (H) : 38 mm
  • Maximum Clamp Collar Diameter (F): 3.25 inches
  • Maximum Clamp Collar Diameter (F) : 83 mm
  • Maximum Clamp Collar Width (D): 0.750 inches
  • Maximum Clamp Collar Width (D) : 19 mm
Single Clamp Stainless Steel Hubs

Adobe 3D PDF help
Configuration
Bore Size D1
d1 Keyway Option
