ServoClass Single Flex Couplings

Part Number: SD002R

Specifications
Click for English
Click for Metric
  • Operating Torque: 2.2 in-lbs
  • Operating Torque : 0.25 Nm
  • Minimum Bore: 0.125 inches
  • Minimum Bore : 3 mm
  • Maximum Bore: 0.1875 inches
  • Maximum Bore : 5 mm
  • Maximum Speed: 10,000 RPM
  • Torsional Stiffness: 29 in-lbs/degree
  • Torsional Stiffness : 190 Nm/rad
  • Axial Stiffness: 194 lbs/inch
  • Axial Stiffness : 34 N/mm
  • Parallel Misalignment: 0.0003 inches
  • Parallel Misalignment : 0.01 mm
  • Angular Misalignment: 0.5 °
  • Axial Misalignment: 0.001 inches
  • Axial Misalignment : 0.04 mm
  • Inertia: 0.0002 lb-in²
  • Inertia : 6.0 x 10-⁸ kg-m²
  • Weight: 0.10 ounces
  • Weight : 3 grams

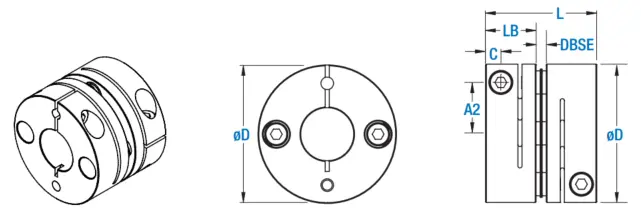

  • Outside Diameter (D): 0.470 inches
  • Outside Diameter (D) : 12 mm
  • Overall Length (L): 0.486 Inches
  • Overall Length (L) : 12.35 mm
  • Hub Length (LB): 0.232 Inches
  • Hub Length (LB) : 5.9 mm
