ServoClass Double Flex Couplings
Part Number: SC020R
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Specifications
Click for English
Click for Metric
- Operating Torque: 18 in-lbs
- Operating Torque : 2 Nm
- Minimum Bore: 0.1875 inches
- Minimum Bore : 4 mm
- Maximum Bore: 0.4375 inches
- Maximum Bore : 11 mm
- Maximum Speed: 10,000 RPM
- Torsional Stiffness: 286 in-lbs/degree
- Torsional Stiffness : 1,850 Nm/rad
- Axial Stiffness: 183 lbs/inch
- Axial Stiffness : 32 N/mm
- Parallel Misalignment: 0.006 inches
- Parallel Misalignment : 0.15 mm
- Angular Misalignment: 1 °
- Axial Misalignment: 0.013 inches
- Axial Misalignment : 0.33 mm
- Inertia: 0.012 lb-in²
- Inertia : 3.4 x 10⁻⁶ kg-m²
- Weight: 1.3 ounces
- Weight : 35 grams

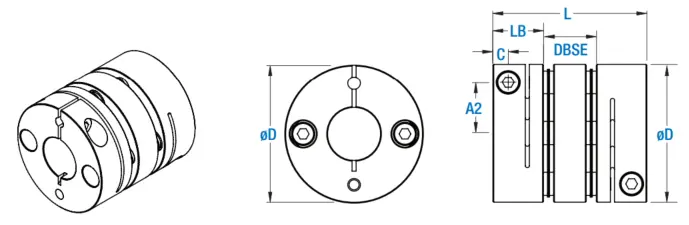

- Outside Diameter (D): 1.024 Inches
- Outside Diameter (D) : 26 mm
- Overall Length (L): 1.272 Inches
- Overall Length (L) : 32.3 mm
- Hub Length (LB): 0.423 Inches
- Hub Length (LB) : 10.75 mm
- Distance Between Shaft Ends (DBSE): 0.425"
- Distance Between Shaft Ends (DBSE) : 10.8 mm
- Inside Diameter of Flex Disc (K): 0.417 Inches
- Inside Diameter of Flex Disc (K) : 10.6 mm
- Clamp Screw to Bore (A2): 0.374 inches
- Clamp Screw to Bore (A2) : 9.5 mm
- Clamp Screw to End of Hub (C): 0.130 inches
- Clamp Screw to End of Hub (C) : 3.3 mm
- Clamp Screw Size (M): M2.5
- Clamp Screw Size (M) : M2.5
- Tightening Torque: 9 in-lbs
- Tightening Torque : 1 Nm
| ServoClass Double Flex sc020r Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
