Configuration
Bore Size D1
Bore Size D2

Schmidt Flexible Couplings

Part Number: F019B

Specifications
  • Torsional Stiffness: 1,386
  • Minimum Bore: 0.63
  • Maximum Bore: 1.13
  • Maximum Misalignments Angular: 1.0
  • Net weight: 1.120
  • Inertia (Wk2): 0.550
  • HP/100: 0.360

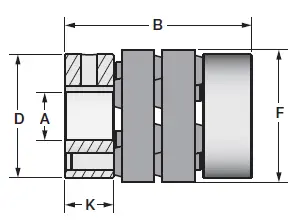

  • Coupling Length B: 2.875
  • Maximum Torque: 230
  • Maximum Misalignments Parallel: 0.010
  • Maximum Misalignments Axial: 0.019
  • Hub Diameter D: 1.900
  • Hub Length K: 0.750
  • Max Bore A: 0.875
  • Flex Disc Diameter F: 2.040
