Regular Shaft-to-Shaft Torq-Tenders
Part Number: TT1X-C
Click image to enlarge
Specifications
Click for English
Click for Metric
- Torque Range: 3 - 60 in-lbs (must specify)
- Torque Range : 0.3 - 6.8 Nm (must specify)
- Minimum Bore: 0.250 inches
- Minimum Bore : 6 mm
- Max Shaft Bore (C): 0.500 inches
- Max Shaft Bore (C) : 12 mm
- Max Housing Bore (F): 0.625 inches
- Max Housing Bore (F) : 15 mm
- Outside Diameter (A): 1.562 inches
- Outside Diameter (A) : 39.67 mm
- Overall Length (K): 1.800 inches
- Overall Length (K) : 45.72 mm
- Dimension (B): 0.875 inches
- Dimension (B) : 22.23 mm
- Dimension (D): 1.140 inches
- Dimension (D) : 28.96 mm
- Dimension (E): 0.630 inches
- Dimension (E) : 16.00 mm
- Dimension (G): 1.000 inches
- Dimension (G) : 25.40 mm
- Dimension (H): 0.135 inches
- Dimension (H) : 3.43 mm
- Dimension (I): 0.205 inches
- Dimension (I) : 5.21 mm
- Dimension (J): 1.000 inches
- Dimension (J) : 25.40 mm
- Dimension (L): 0.600 inches
- Dimension (L) : 15.19 mm
- Dimension (M): 0.218 inches
- Dimension (M) : 5.54 mm
- Weight: 0.5 lbs
- Weight : 0.23 kg

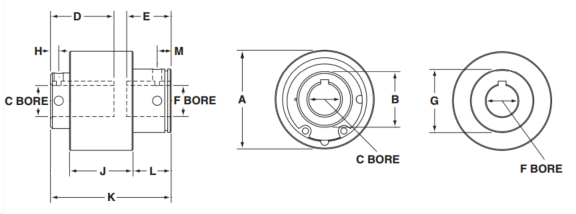

| Regular Shaft-to-Shaft Torq-Tenders - Type C tt1x-c Configuration | |
| C Bore | |
| F Bore | |
