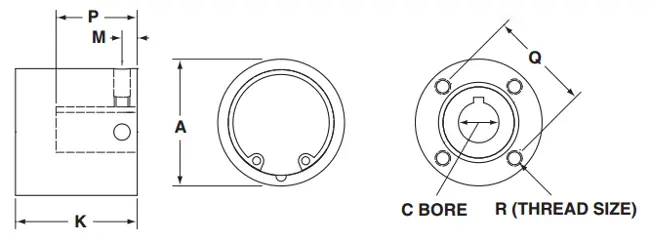

C Bore

Regular End-of-Shaft Mount Torq-Tenders

Part Number: TT3-JF

Specifications
Click for English
Click for Metric
  • Torque Range: 18 - 500 in-lbs
  • Torque Range : 2.0 - 56.5 Nm
  • Minimum Bore: 0.500 inches
  • Minimum Bore : 14 mm
  • Max Bore (C): 1.125 inches
  • Max Bore (C) : 28 mm
  • Housing Diameter (A): 3.000 inches
  • Housing Diameter (A) : 76.2 mm
  • Overall Length (K): 2.560 inches
  • Overall Length (K) : 65.0 mm
  • Dimension (M): 0.370 inches
  • Dimension (M) : 9.4 mm
  • Bore Depth (P): 1.625 inches
  • Bore Depth (P) : 41.3 mm
  • Bolt Circle (Q): 2.375 inches
  • Bolt Circle (Q) : 60.33 mm
  • Thread Size (R): (4) 5/16"-18 X 0.50" Deep
  • Weight: 3.25 lbs
  • Weight : 1.47 kg
