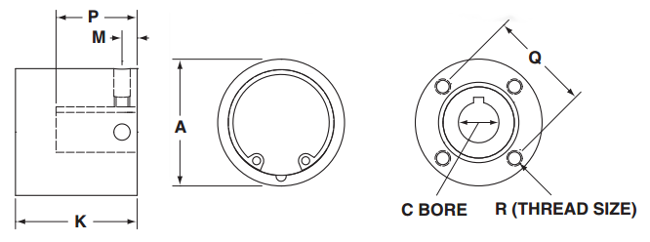

C Bore

Regular End-of-Shaft Mount Torq-Tenders

Part Number: TT1X-JF

Specifications
Click for English
Click for Metric
  • Torque Range: 3 - 60 in-lbs
  • Torque Range : 0.3 - 6.8 Nm
  • Minimum Bore: 0.250 inches
  • Minimum Bore : 6 mm
  • Max Bore (C): 0.500 inches
  • Max Bore (C) : 12 mm
  • Housing Diameter (A): 1.562 inches
  • Housing Diameter (A) : 39.7 mm
  • Overall Length (K): 1.500 inches
  • Overall Length (K) : 38.1 mm
  • Dimension (M): 0.187 inches
  • Dimension (M) : 4.75 mm
  • Bore Depth (P): 0.875 inches
  • Bore Depth (P) : 22.2 mm
  • Bolt Circle (Q): 1.250 inches
  • Bolt Circle (Q) : 31.75 mm
  • Thread Size (R): (4) #10-32 X 0.25" Deep
  • Weight: 0.5 lbs
  • Weight : 0.23 kg
