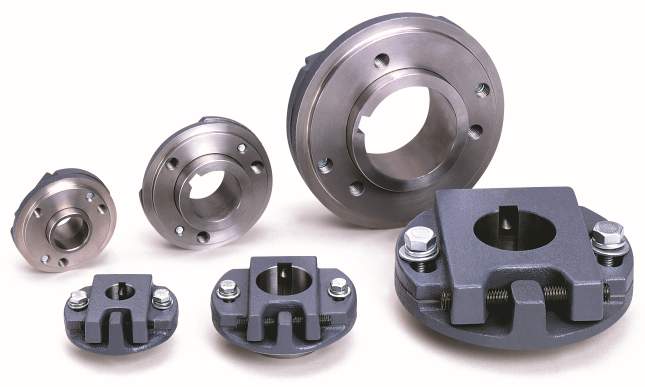

Standard Size Phase Adjusting Hubs

Part Number: A

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Weight: 1.40 lbs
  • Weight : 0.63 kg
  • Overall Diameter (A): 2.875 inches
  • Overall Diameter (A) : 73.03 mm
  • Overall Width (B): 1.53 inches
  • Overall Width (B) : 38.86 mm
  • Dimension (C): 2.45 inches
  • Dimension (C) : 62.23 mm
  • Dimension (D): 0.19 inches
  • Dimension (D) : 4.83 mm
  • Dimension (E): 0.31 inches
  • Dimension (E) : 7.95 mm
  • Dimension (F): 1.25 inches
  • Dimension (F) : 31.75 mm
  • Bolt Circle (G): 2.125 inches
  • Bolt Circle (G) : 53.98 mm
  • Threaded Holes (H): (3) 1/4"-20 x 1/2" Deep
  • Threaded Holes (H) : (3) 1/4"-20 x 12.7 mm Deep
  • Minimum Sprocket Size for Chain Size 25: 35
  • Minimum Sprocket Size for Chain Size 35: 25
  • Minimum Sprocket Size for Chain Size 40: 19
  • Minimum Sprocket Size for Chain Size 41: 20
  • Minimum Sprocket Size for Chain Size 50: 16
  • Minimum Sprocket Size for Chain Size 60: 15
phase_adjusting_hubs

Adobe 3D PDF help
Configuration
Bore Size D1
