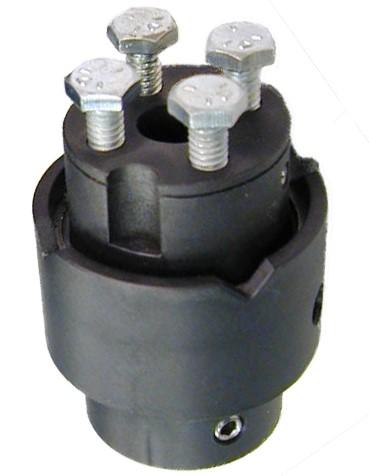

H-TLC Torque Limiters
Part Number: H-TLC-500-C
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge
Specifications
Click for English
Click for Metric
- Torque Range: 4 - 150 in-lbs
- Torque Range : 0.5 - 16.9 Nm
- Minimum Bore: 0.250 inches
- Minimum Bore : 8 mm
- Max Shaft Bore (C): 0.563 inches
- Max Shaft Bore (C) : 15 mm
- Max Housing Bore (F): 0.750 inches
- Max Housing Bore (F) : 18 mm
- Outside Diameter (A): 2.000 inches
- Outside Diameter (A) : 50.80 mm
- Overall Length (K): 2.500 inches
- Overall Length (K) : 63.50 mm
- Dimension (B): 1.490 inches
- Dimension (B) : 37.85 mm
- Dimension (D): 1.625 inches
- Dimension (D) : 41.28 mm
- Dimension (E): 0.855 inches
- Dimension (E) : 21.72 mm
- Dimension (G): 1.490 inches
- Dimension (G) : 37.85 mm
- Dimension (H): 0.250 inches
- Dimension (H) : 6.35 mm
- Dimension (H1): 1.250 inches
- Dimension (H1) : 31.75 mm
- Dimension (I): 0.563 inches
- Dimension (I) : 14.30 mm
- Dimension (J): 1.187 inches
- Dimension (J) : 30.15 mm
- Dimension (L): 0.750 inches
- Dimension (L) : 19.05 mm
- Dimension (M): 0.375 inches
- Dimension (M) : 9.53 mm
- Weight: 0.5 lbs
- Weight : 0.23 kg
| H-TLC Torque Limiters h-tlc-500-c Configuration | |
| C Bore | |
| F Bore | |
