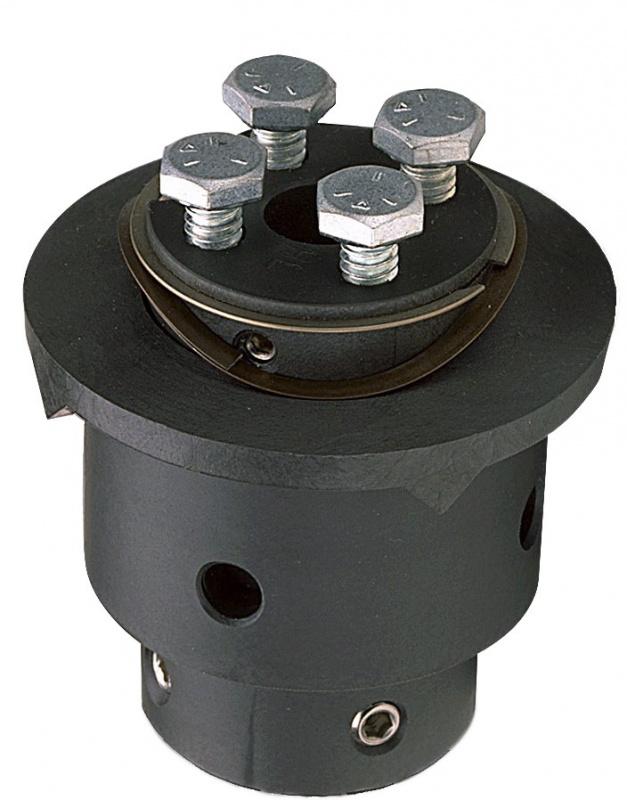

Torque Limiter H-TLC-500-BD
Part Number: H-TLC-500-BD
Click image to enlarge
Click image to enlarge
Technical Resources
| H-TLC Torque Limiters h-tlc-500-bd Configuration | |
| Shaft Bore (C) | |
H-TLC-500-BD Specifications
Click for English
Click for Metric
| Part Number | H-TLC-500-BD |
| Torque Range: | 4 - 150 in-lbs |
| Torque Range : | 0.5 - 16.9 Nm |
| Minimum Bore: | 0.250 inches |
| Minimum Bore : | 8 mm |
| Max Shaft Bore (C): | 0.563 inches |
| Max Shaft Bore (C) : | 15 mm |
| Outside Diameter (A): | 2.000 inches |
| Outside Diameter (A) : | 50.80 mm |
| Overall Length (K): | 2.500 inches |
| Overall Length (K) : | 63.50 mm |
| Dimension (B): | 1.490 inches |
| Dimension (B) : | 37.85 mm |
| Dimension (D): | 1.625 inches |
| Dimension (D) : | 41.28 mm |
| Dimension (E): | 0.855 inches |
| Dimension (E) : | 21.72 mm |
| Dimension (G): | 1.490 inches |
| Dimension (G) : | 37.85 mm |
| Dimension (H): | 0.250 inches |
| Dimension (H) : | 6.35 mm |
| Dimension (H1): | 1.250 inches |
| Dimension (H1) : | 31.75 mm |
| Dimension (I): | 0.563 inches |
| Dimension (I) : | 14.30 mm |
| Dimension (J): | 1.187 inches |
| Dimension (J) : | 30.15 mm |
| Dimension (L): | 0.750 inches |
| Dimension (L) : | 19.05 mm |
| Dimension (M): | 0.375 inches |
| Dimension (M) : | 9.53 mm |
| Bolt Circle (Q): | 1.125 inches |
| Bolt Circle (Q) : | 28.58 mm |
| Thread Size (R): | 1/4"-20 x 1/2" Deep |
| Thread Size (R) : | 1/4"-20 x 12.7 mm Deep |
| Disc Diameter (X): | 2.500 inches |
| Disc Diameter (X) : | 63.50 mm |
| Dimension (Z): | 2.275 inches |
| Dimension (Z) : | 2.275 inches |
| Dimension (Z1): | 2.125 inches |
| Dimension (Z1) : | 2.275 inches |
| Weight: | 0.5 lbs |
| Weight : | 0.23 kg |
