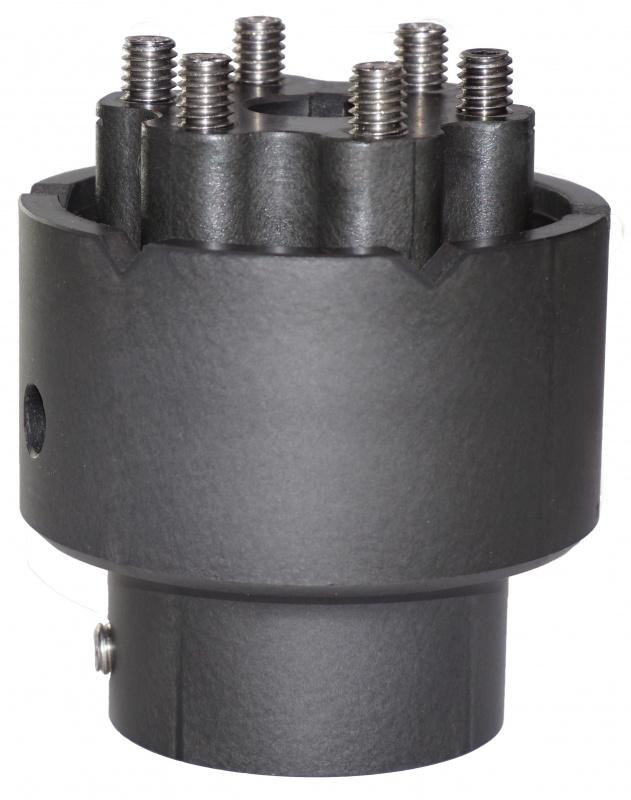

Torque Limiter H-TLC-1000-C
Part Number: H-TLC-1000-C
Click image to enlarge
Click image to enlarge
Technical Resources
| Shaft-to-Shaft Torq-Tenders with Actuating Disc - Type CD h-tlc-1000-c Configuration | |
| Shaft Bore (C) | |
| Housing Bore (F) | |
H-TLC-1000-C Specifications
Click for English
Click for Metric
| Part Number | H-TLC-1000-C |
| Torque Range: | 40 - 500 in-lbs |
| Torque Range : | 4.5 - 56.5 Nm |
| Minimum Bore: | 0.500 inches |
| Minimum Bore : | 13 mm |
| Max Shaft Bore (C): | 1.125 inches |
| Max Shaft Bore (C) : | 28 mm |
| Max Housing Bore (F): | 1.250 inches |
| Max Housing Bore (F) : | 30 mm |
| Outside Diameter (A): | 3.200 inches |
| Outside Diameter (A) : | 81.28 mm |
| Overall Length (K): | 3.450 inches |
| Overall Length (K) : | 87.63 mm |
| Dimension (B): | 2.370 inches |
| Dimension (B) : | 60.20 mm |
| Dimension (D): | 2.230 inches |
| Dimension (D) : | 56.64 mm |
| Dimension (E): | 1.210 inches |
| Dimension (E) : | 30.73 mm |
| Dimension (G): | 2.220 inches |
| Dimension (G) : | 56.39 mm |
| Dimension (H): | 0.315 inches |
| Dimension (H) : | 8.00 mm |
| Dimension (H1): | 1.625 inches |
| Dimension (H1) : | 41.28 mm |
| Dimension (I): | 0.520 inches |
| Dimension (I) : | 13.21 mm |
| Dimension (J): | 1.810 inches |
| Dimension (J) : | 45.97 mm |
| Dimension (L): | 1.12 inches |
| Dimension (L) : | 28.45 mm |
| Dimension (M): | 0.400 inches |
| Dimension (M) : | 10.16 mm |
| Weight: | 1.0 lbs |
| Weight : | 0.45 kg |
