Model 1250 SAE E Mount Overhung Load Adaptors
Part Number: 1250 SAE E
Warning: array_merge(): Argument #2 is not an array in /data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line 35
Click image to enlarge

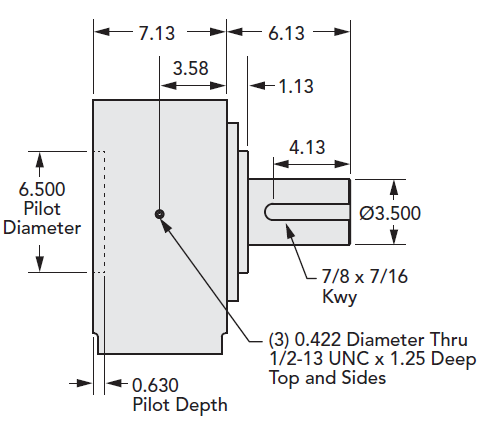

Specifications
Click for English
Click for Metric
- Input Standard: SAE E 4-Bolt Mount
- Input Bore: 13 tooth 8/16 spline
- Input Bore : 13 tooth 8/16 spline
- Input Bore Depth: 3.73"
- Input Bore Depth : 94.74 mm
- Output Shaft: 3-1/2" with keyway (7/8" x 7/16")
- Output Shaft : 88.9mm with keyway (22.23mm x 11.11mm)
- Output Shaft Length: 5.00"
- Output Shaft Length : 127 mm
- Input Pilot Diameter: 6.500"
- Input Pilot Diameter : 165.1 mm
- Input Pilot Depth: 0.625"
- Input Pilot Depth : 15.88 mm
- Output Pilot Diameter: 6.500"
- Output Pilot Diameter : 165.1 mm
- Output Pilot Height: 0.500"
- Output Pilot Height : 12.7 mm
- Max Speed (w/o modification): 1,500 RPM
- Housing Material: Cast Iron
- Shaft Material: 1144 Stressproof Steel
- Bearing Type (std): Spherical Roller Bearings
- Standard Lubrication Method: Grease
- Optional Lubrication Methods: Contact Factory
- Rec. Grease (typical app.): NLGI #2; Lithium Base
- Minimum Grease Capacity: 11 oz.
- Maximum Grease Capacity: 22 oz.
- Grease Fitting: Optional
- Housing Ports: (3) 0.422" thru; 1/2-13 x 1.25 deep
- Unit Weight: 250 lbs
- Unit Weight : 113 kg
- Standard Mounting Orientation: Shaft Horizontal - Consult Factory for other Mounting Orientations
