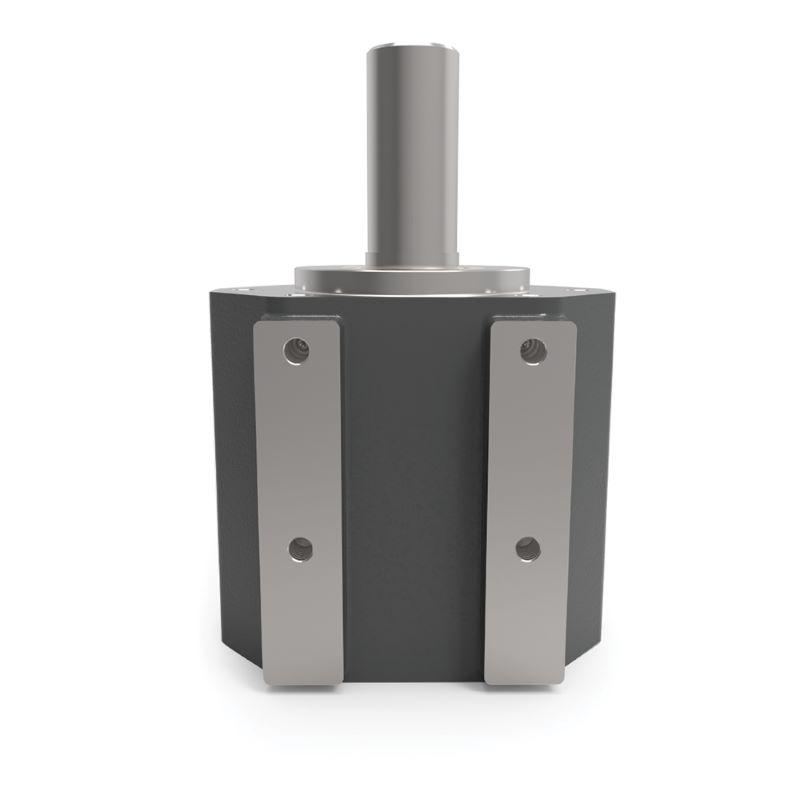

Model 650-15S Overhung Load Adaptor - SAE B Mount, 15 Tooth 16/32 Spline Input Bore, 1-1/2" Keyed Output Shaft
Part Number: 650-15S

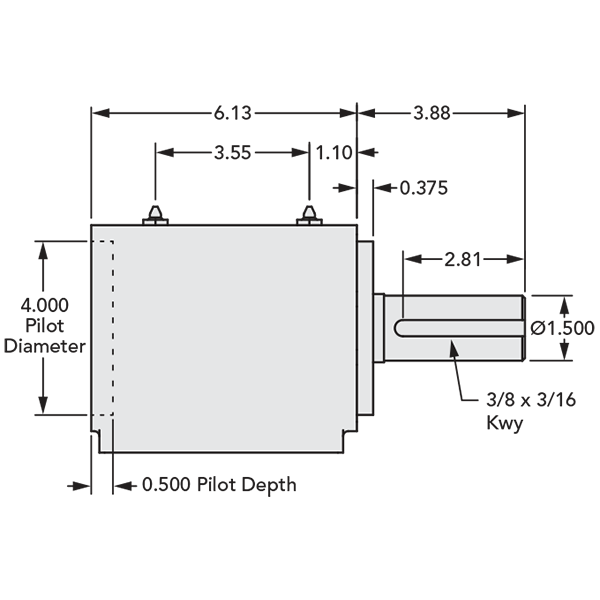

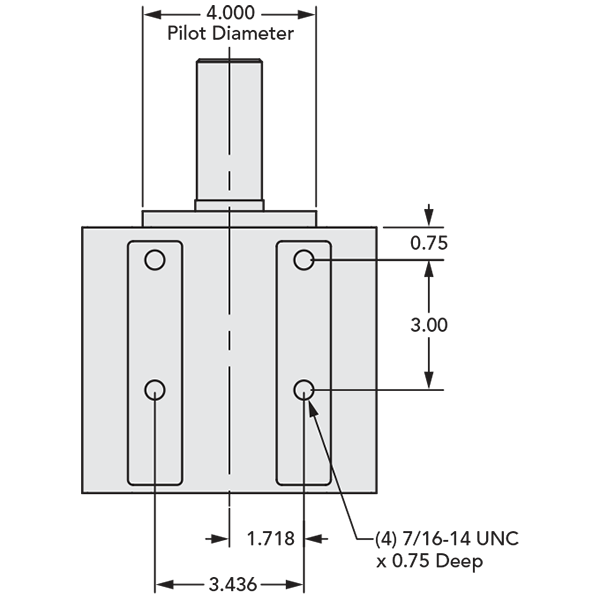

Click image to enlarge

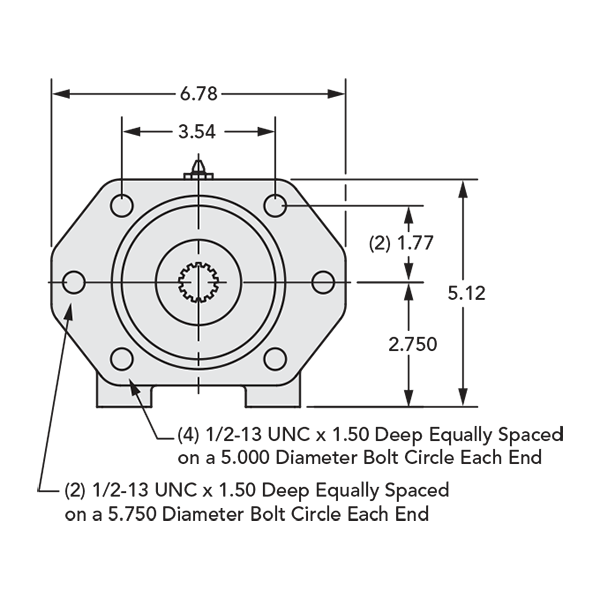

Click image to enlarge
Technical Resources
650-15S Specifications
Click for English
Click for Metric
| Part Number | 650-15S |
| Input Standard: | SAE B 2 or 4-Bolt Mount |
| Input Bore: | 15 tooth 16/32 Spline |
| Input Bore : | 15 tooth 16/32 Spline |
| Input Bore Depth: | 2.43" |
| Input Bore Depth : | 61.72 mm |
| Output Shaft: | 1-1/2" with keyway (3/8" x 3/16") |
| Output Shaft : | 38.1mm with keyway (9.53mm x 4.76mm) |
| Output Shaft Length: | 3.50" |
| Output Shaft Length : | 88.9 mm |
| Input Pilot Diameter: | 4.000" |
| Input Pilot Diameter : | 101.6 mm |
| Input Pilot Depth: | 0.500" |
| Input Pilot Depth : | 12.7 mm |
| Output Pilot Diameter: | 4.000" |
| Output Pilot Diameter : | 101.6 mm |
| Output Pilot Height: | 0.375" |
| Output Pilot Height : | 9.53 mm |
| Max Speed (w/o modification): | 3,500 RPM |
| Housing Material: | Cast Iron |
| Shaft Material: | 8620 Steel - Heat-treated |
| Bearing Type (std): | Spherical Roller Bearings |
| Standard Lubrication Method: | Grease |
| Optional Lubrication Methods: | Contact Factory |
| Rec. Grease (typical app.): | NLGI #2; Lithium Base |
| Minimum Grease Capacity: | 3.5 oz. |
| Maximum Grease Capacity: | 7.0 oz. |
| Grease Fitting: | (2) Zerk Fitting (1/4-18 NPT) |
| Unit Weight: | 40 lbs |
| Unit Weight : | 18 kg |
| Standard Mounting Orientation: | Shaft Horizontal - Consult Factory for other Mounting Orientations |
