Model 615-20 SAE B Mount Overhung Load Adaptors
Part Number: 615-20
Click image to enlarge
Specifications
Click for English
Click for Metric

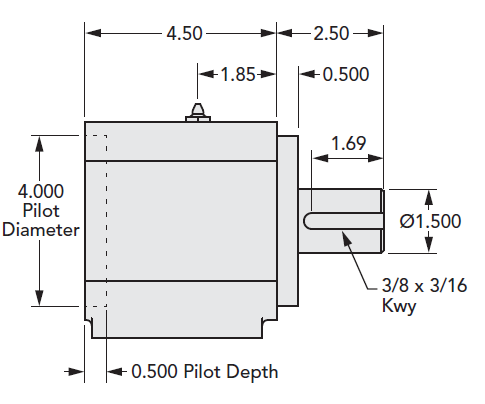

- Input Standard: SAE B 2 or 4-Bolt Mount
- Input Bore: 1-1/4" with keyway (5/16" x 5/32")
- Input Bore : 31.75mm with keyway (7.94mm x 3.97mm)
- Input Bore Depth: 2.86"
- Input Bore Depth : 72.64 mm
- Output Shaft: 1-1/2" with keyway (3/8" x 3/16")
- Output Shaft : 38.1mm with keyway (9.53mm x 4.76mm)
- Output Shaft Length: 2.00"
- Output Shaft Length : 50.8 mm
- Input Pilot Diameter: 4.000"
- Input Pilot Diameter : 101.6 mm
- Input Pilot Depth: 0.500"
- Input Pilot Depth : 12.7 mm
- Output Pilot Diameter: 4.000"
- Output Pilot Diameter : 101.6 mm
- Output Pilot Height: 0.500"
- Output Pilot Height : 12.7 mm
- Max Speed (w/o modification): 2,300 RPM
- Housing Material: Cast Iron
- Shaft Material: 1144 Stressproof Steel
- Bearing Type (std): Tapered Roller Bearings
- Standard Lubrication Method: Grease
- Optional Lubrication Methods: Contact Factory
- Rec. Grease (typical app.): NLGI #2; Lithium Base
- Minimum Grease Capacity: 2.2 oz.
- Maximum Grease Capacity: 4.4 oz.
- Grease Fitting: (1) Zerk Fitting (1/4-18 NPT)
- Unit Weight: 30 lbs
- Unit Weight : 14 kg
- Standard Mounting Orientation: Shaft Horizontal - Consult Factory for other Mounting Orientations
