Model 515-20 Overhung Load Adaptor - SAE A Mount, 1-1/4" Keyed Input Bore, 1-1/2" Keyed Output Shaft
Part Number: 515-20

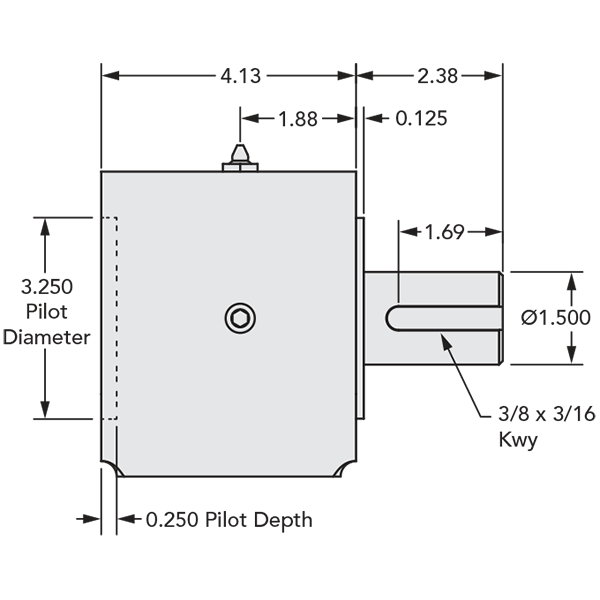

Click image to enlarge
Click image to enlarge
Technical Resources
515-20 Specifications
Click for English
Click for Metric
| Part Number | 515-20 |
| Input Standard: | SAE A 2 or 4 Bolt Magneto Mount |
| Input Bore: | 1-1/4" with keyway (5/16" x 5/32") |
| Input Bore : | 31.75mm with keyway (7.94mm x 3.97mm) |
| Input Bore Depth: | 2.50" |
| Input Bore Depth : | 63.5 mm |
| Output Shaft: | 1-1/2" with keyway (3/8" x 3/16") |
| Output Shaft : | 38.1mm with keyway (9.53mm x 4.76mm) |
| Output Shaft Length: | 2.25" |
| Output Shaft Length : | 57.2 mm |
| Input Pilot Diameter: | 3.250" |
| Input Pilot Diameter : | 82.55 mm |
| Input Pilot Depth: | 0.250" |
| Input Pilot Depth : | 6.35 mm |
| Output Pilot Diameter: | 3.250" |
| Output Pilot Diameter : | 82.55 mm |
| Output Pilot Height: | 0.125" |
| Output Pilot Height : | 3.18 mm |
| Max Speed (w/o modification): | 2,300 RPM |
| Housing Material: | Cast Iron |
| Shaft Material: | 1144 Stressproof Steel |
| Bearing Type (std): | Tapered Roller Bearings |
| Standard Lubrication Method: | Grease |
| Optional Lubrication Methods: | Contact Factory |
| Rec. Grease (typical app.): | NLGI #2; Lithium Base |
| Minimum Grease Capacity: | 2.0 oz. |
| Maximum Grease Capacity: | 4.0 oz. |
| Grease Fitting: | (1) Zerk Fitting (1/4-18 NPT) |
| Additional Housing Ports: | (3) 1/4-18 NPT thru |
| Unit Weight: | 22 lbs |
| Unit Weight : | 10 kg |
| Standard Mounting Orientation: | Shaft Horizontal - Consult Factory for other Mounting Orientations |
